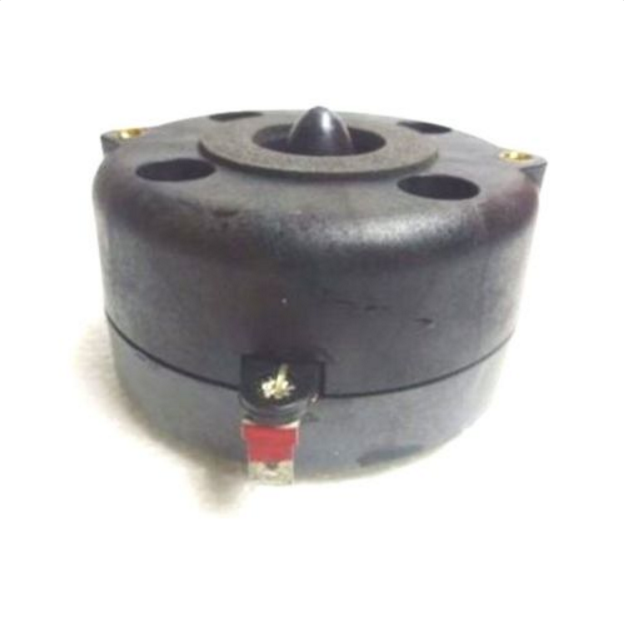

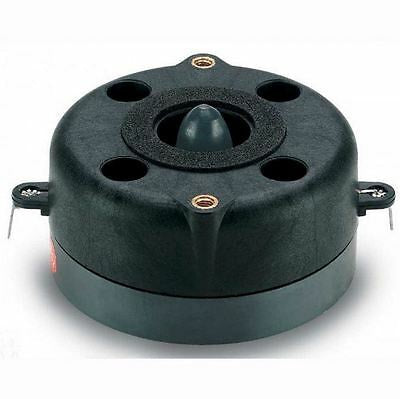

18SOUND Horn Driver HD125 1" Bolt on

The HD125 1 inch exit HF unit's designed evolved from the industry standard HD120 compression driver. It delivers an unmatched combination of extended linear frequency response and high efficiency. The HD125 diaphragm assembly is made in proprietary treated polyethylene material. This design maintains the minimum resonance frequency point value at 1600 Hz, extending the frequency response in the mid region when compared to HD120 compression driver. The construct of the diaphragm and its polyester surround allow best movement and stress control; the special radial ribs increase stiffness. which help avoid uncontrolled vibration modes in the usable frequency range. An edge-wound aluminum voice coil, wounded on proprietary treated Nomex, completes the diaphragm assembly. Thanks to its physical properties, the voice coil former shows 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton. This plus is capable to keep properly energy transfer control to the dome in real working conditions.Moreover, this particular former material is suitable to work also in higher moisture contents environments. The polypropylene phase plug is the result of a meticulous design exercise. Its shape assures the correct acoustic impedance of the radiating dome, reducing distortion levels across a very wide frequency range. At the end, it results in a smooth coherent wave front in the horn entrance, high thermal stability and manufacturing consistency. The HD125 compact size and lightweight ceramic magnet assembly has been designed to obtain 16 KGauss in the gap.
