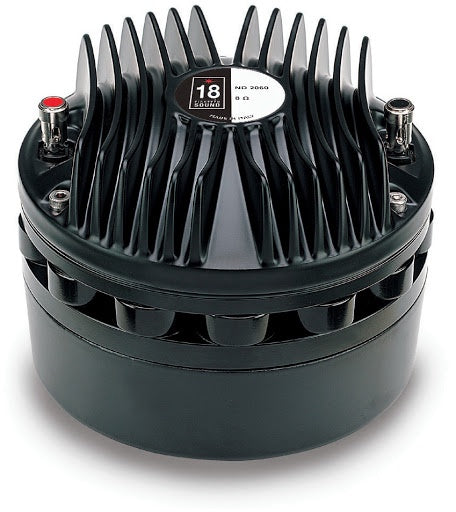

18SOUND Horn Driver ND2060 2" Neo Bolt on 8OHMS

HF DRIVER ND2060 8Ohm EIGHTEEN SOUND

HF Neodymium Driver

The ND2060 2-inch exit neodymium high frequency compression driver has been designed for high level sound systems application.

Features

• 109 dB SPL 1W / 1m average sensitivity
• 2 inch exit throat
• 3 inch aluminum edgewound voice coil
• 200 W program power handling
• Neodymium magnetic structure
• Pure Titanium diaphragm assembly
• Excellent thermal exchange

Specifications

GENERAL SPECIFICATIONS

• Throat Diameter:50 mm (2 in)
• Rated Impedance:8 ohm
• DC Resistance:6,2 ohm
• Minimum Impedance:8 ohm at 3500 Hz
• Le (at 1kHz):124 µH
• AES power:100 W above 1,2 kHz
• Program power:200 W above 1,2 kHz
• Sensitivity(1W@1m):109 dB
• Frequency Range:500 Hz ÷ 20 kHz
• Recomm. Xover Frequency:800Hz (12 dB/oct slope)
• Diaphragm Material:Titanium
• Voice Coil Diameter:75 mm (3 in)
• Voice Coil Winding Material:Edge-wound aluminum
• Magnet Material:Neodymium
• Flux Density:1,9 T
• BL Factor:13,5 N/A
• Polarity:Positive voltage on red terminal gives positive pressure in the throat

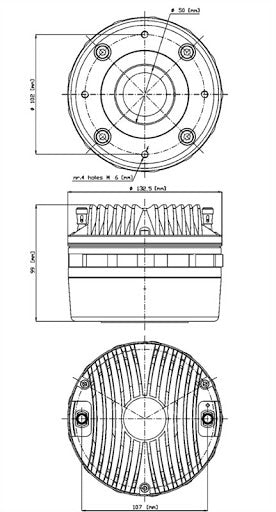

MOUNTING INFORMATIONS

• Overall diameter:132,5 mm (5,22 in)
• Mounting holes diameter:4 M6 holes 90° at Ø102 mm (4 in)
• Bolt circle diameter:102mm (4 in)
• Total depth:99 mm (3,9 in)
• Net weight:3,6 kg (7,9 lb)
• Shipping weight:4 kg (8,8 lb)
• CardBoard Packaging dimensions:132x132x103 mm(5,2x5,2x4,1 in)
