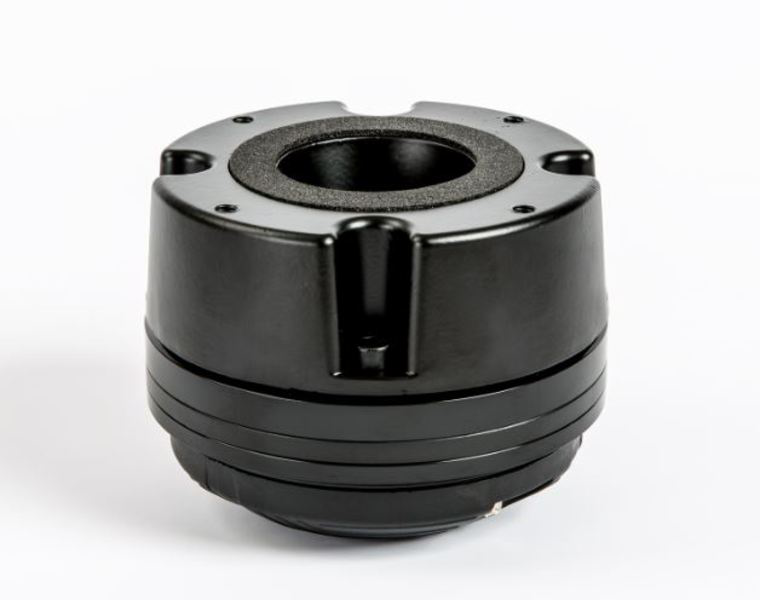

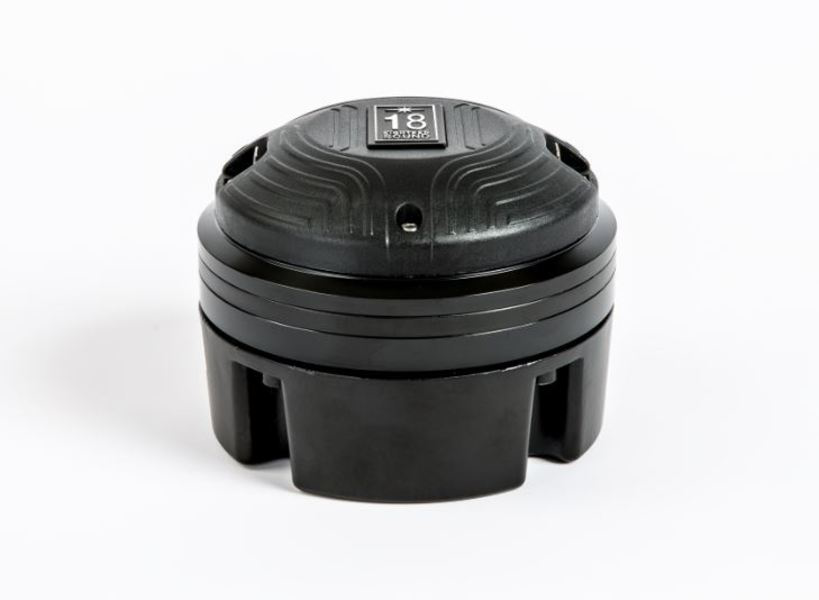

18SOUND Horn Driver ND32ST 2" Neo Bolt on
G$97,370.00
The best components.
ND32ST is a medium format treble compression driver, with a 3 ″ inch titanium diaphragm, coupled to a 4-slot metal phase corrector and a neodymium ring magnet. It has an AES power of 120 ”and a peak of 240W, a frequency range of 800 - 25,000 Hz and a weight of 2.8 kg.
Quick look
- Throat diameter.
- Nominal impedance.
- Resistance.
- Minimum impedance.
- Power.
- Sensitivity.
- Frequency range.
- Recommended crossover.
- Diaphragm material.
- Moving coil diameter.
- Winding material.
- Magnetic material.
- Flux density.
- Total diameter.
- Mounting holes.
- Bolt circle diameter.
- Total depth.
- Weight.
Throat diameter.
2 ”inches (50 mm).
Nominal impedance.
8 ohms.
Resistance.
4.5 ohms.
Minimum impedance.
6.4 ohms @ 6,500 Hz.
Power.
Continuous: 120W above 1.2 kHz.
Peak: 240W above 1.2kHz.
Sensitivity.
112 dB.
Frequency range.
800 - 25,000 Hz.
Recommended crossover.
1,200 Hz (24dB / Oct).
Diaphragm material.
Pure titanium.
Moving coil diameter.
3 ”inches (75 mm).
Winding material.
CCAW rolled up.
Magnetic material.
Neodymium.
Flux density.
2T.
Total diameter.
120 mm.
Mounting holes.
4 M5 holes.
Bolt circle diameter.
102 mm.
Total depth.
87 mm.
Weight.
2.8 kg.
| Weight | 2.8 KG |
| Impedance | 8 OHM |
| Woofer Inches | 2 IN |
| Frequency range | 800 - 25,000 HZ. |
| magnet | Neodymium |
| Sensitivity 1 W @ 1 Meter | 112 D DB |
