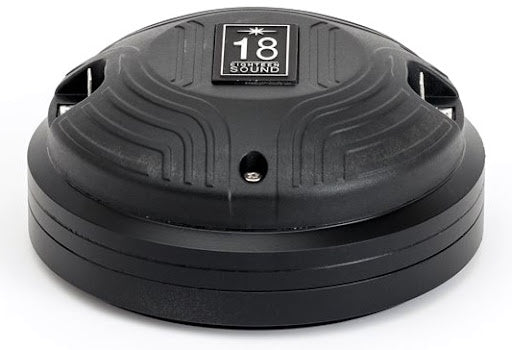

18SOUND Horn Driver ND4015TI2 1.5" Bolt on 8OHMS

G$126,400.00

ND4015Ti2 18 eighteen SOUND Driver 320W 111dB Titanium 1,5 "

Description

NSD4015Ti2 is a 1.5 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.

General Specifications HF

Throat Diameter	38 mm (1.5 in)
Rated Impedance	8 Ohm
DC Resistance	4.7 Ohm
Minimum Impedance	6.9 Ohm at 5500 Hz
Continuous Power	160 W
Program power (8)	320 W
Sensitivity (9)	113 dB
Frequency Range	800 Hz - 20 kHz
Min. Xover Frequency	800 Hz (24 dB / Oct High-Pass Filter)
Diaphragm material	Pure Titanium
Voice Coil Diameter	100 mm (4 in)
Voice Coil winding material	Edge-wound CCAW
Magnet material	Neodymium
Flux Density	2 T
Bl Factor	17 Tm

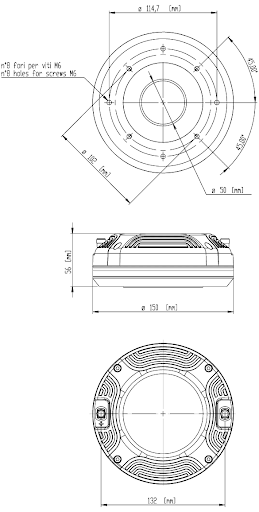

Mounting information

Overall diameter	150 mm (5.9 in)
N. of mounting holes and bolt	4xM6 holes at 90 °
Mounting holes diameter	102 mm (4 in)
Bolt circle diameter	102 mm (4 in)
Total depth	57 mm (2.2 in)
Net weight	3.2 Kg (7.05 lb)
Shipping weight	3.35 Kg (7.38 lb)
Packaging Dimensions	170 x 170 x 80 mm (6.69 x 6.69 x 3.15 in)
