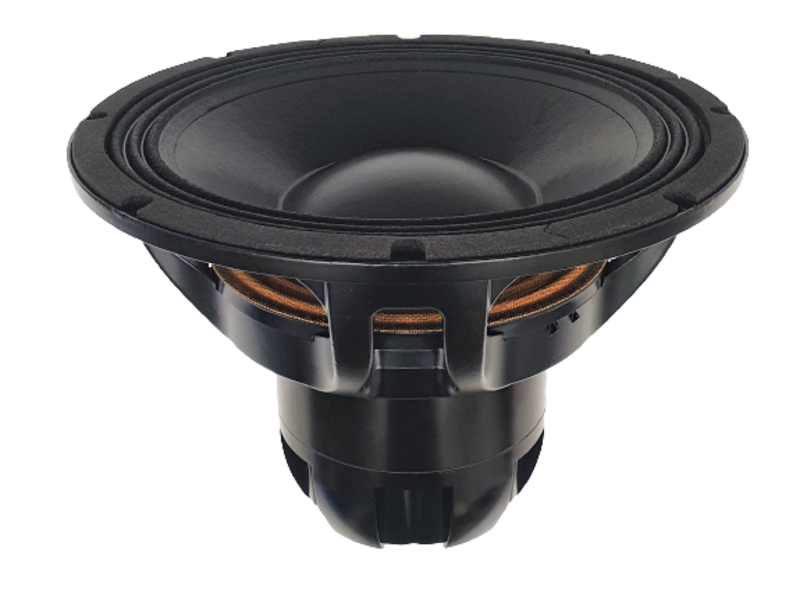

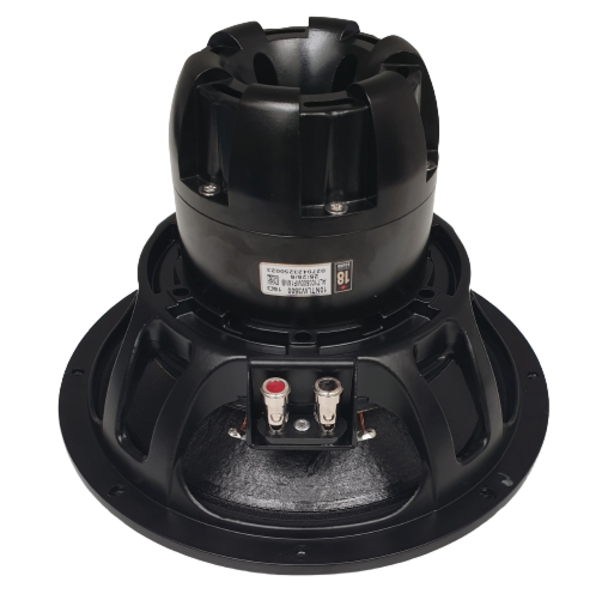

10" Dual Gap Neo Driver - 3.5" vc - 800W AES - 94 dB@1W/1mt - dual SDR - DG
General |
|
| Product type | Cone driver |
| Brand | Eighteen Sound |
| Reference | 10NTLW3500 |
| Product code | ALT103500WF08NA |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 10.5 inch |
| Manufacturer sensitivity | 94 dB |
| Nominal power handling | 800 W |
| Max power handling | 1600 W |
| Bandwidth | 60÷2000 Hz |
Fundamental parameters |
|
| Sd | 346 cm² |
Datas |
|
| Demodulation ring | Yes |
Dimensions |
|
| Voice coil diameter | 3.5 inch |
| Outside diameter | 260 mm |
| Baffle cutout diameter | 233 mm |
| Depth | 177 mm |
| Front thickness | 10 mm |
| Depth after front | 167 mm |
| Diamètre aimant (mm) | 117 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Neodymium |
| Basket masterial | Aluminium |
| Surround shape | Triple roll |
| Surround material | Cloth |
| Cone shape | Curvilinear |
