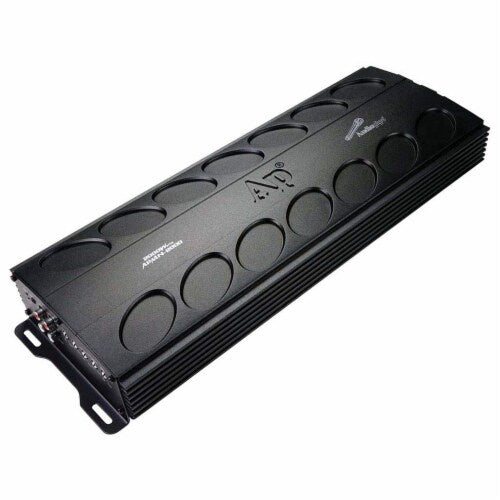

AUDIO PIPE Amplifier Car APMN-4200D 3000W Mini 4CH

 3000 Watts Power

• RMS @ 4 Ohm (<1% Distortion): 4 x 182W

• RMS @ 2 Ohm (<1% Distortion): 4 x 242W

• Maximum Power Output: 2 x 420W

• Frequency Response: 50 - 1.2KHz

• Signal to noise ratio: >80dB

• Input Sensitivity: 0.2 - 6V

• Dimensions (W x H x D): 341 x 55 x 160mm

• Class D 4-Channel Compact Amplifier
• Amplifier will operate with 4-ohm or 2-ohm loads
• 2 / 3 /4 channel operation
• Bridged operation
• CEA-2006 Compliant Amplifier
• Remote gain control included
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• Soft start turn-on
• Fuse - 30A x 2

• Frequency Response - 10Hz - 20kHz
• Signal to Noise Ratio >80dB
• Gain Adjust - 200mV - 6V
• Speaker Level Gain Adjust - 4V - 12V
• Total Harmonic Distortion - 1.0%
• Variable Low-pass Crossover Frequency - 50Hz - 200Hz
• Variable Low-pass Crossover Slope - (dB/oct): 24dB/octave
• Variable High-pass Crossover Frequency - 50Hz - 1500Hz
• Variable Bass Boost @ 40Hz (0 - 15 dB)

• 4-channel, 3-channel, 2-channel operation
• 2 Pairs of RCA low level inputs
• Remote Bass Control Input

• 100 watts x 4 channels @ 4 Ω
• 130 watts x 4 channels @ 2 Ω
• 250 watts x 2 channels bridged @ 4 Ω

• Overall Dimensions: Dimensions: 6-3/8"W x 2-1/4"H x 8-3/8"
