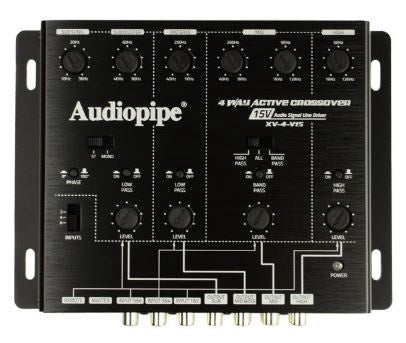

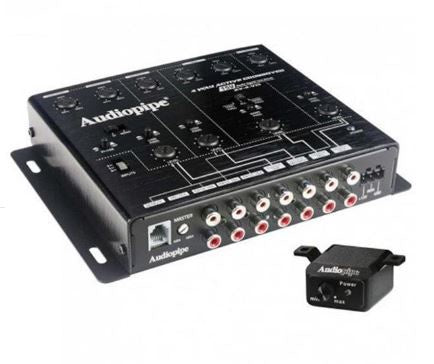

Audiopipe XV4V15 4 Way Crossover with 6 Channel Input & 8 Channel Output

Features

• 4-Way Active Crossover
• 15 V Audio Signal Line Driver
• 6 channels input/8 channels output
• Master gain control
• Independent gain control per pair of channels
• HP, ALL and BP switchable
• Mono and Stereo switch
• 2/4/6 channel input selector
• 15 volts RMS line-driver
• On/Off switch per pair of outputs for easy fine tuning
• Separate inputs for front, rear and subwoofer
• Front and rear high pass outputs
• Non-fade low pass output
• Adjustable low pass gain
• Ground loop isolation input circuit

Specifications

• High & Tweeter: 1KHz - 12KHz @ 12dB/octave
• Midbass: 40Hz - 90Hz @ 12dB/octave
• Subwoofer: 40Hz - 90Hz @ 12dB/octave
• Subsonic Filter: 10Hz - 30Hz @ 18dB/octave
• Signal to Noise Ratio: -105dB A-weighted
• Total Harmonic Distortion: <0.04%
• Stereo Separation: >70dB
• Dimension: 9" H x 3" W x 9.25" L
• Weight: 2.4 lbs
