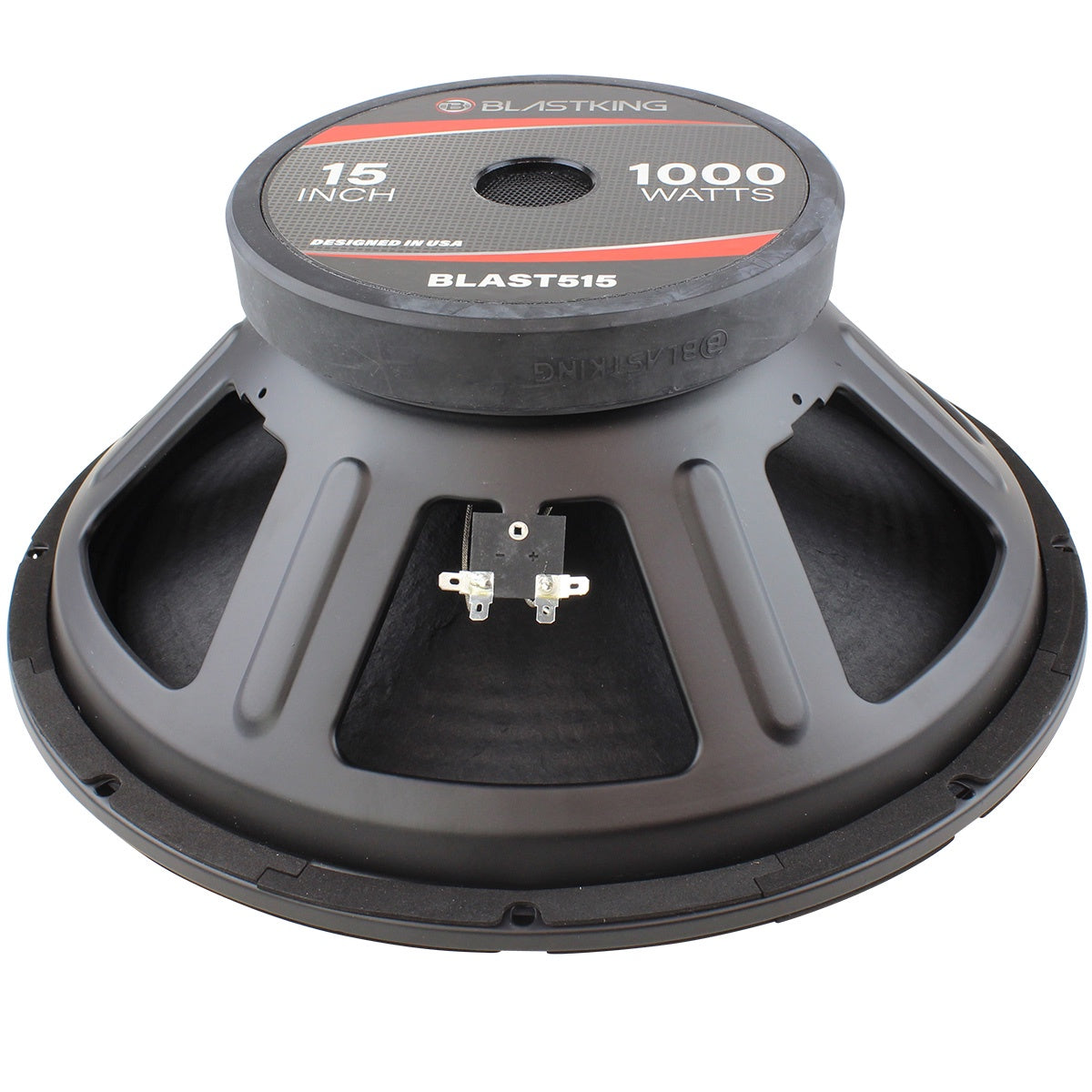

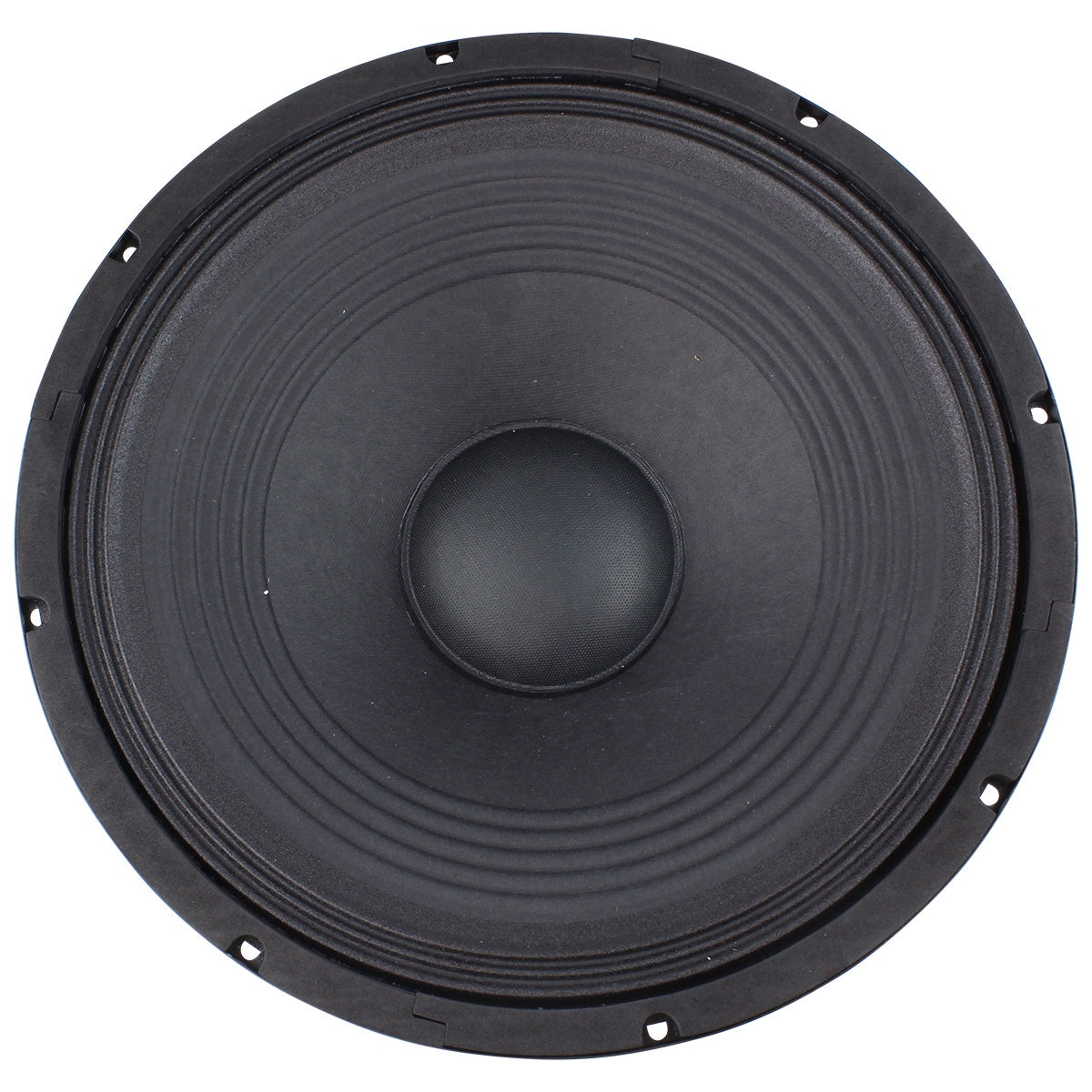

BLASTKING Speaker 15" I75-BLAST515 BLASTKING Speaker 15" I75-BLAST515

BLASTKING Speaker 15" I75-BLAST515

G$25,360.00

15 inch 1000 Watts Midbass Loudspeaker – BLAST515

Product Description

  • Application: Midbass and Woofer
  • 1000 Watts Power handling
  • 15 inch (385mm) Nominal diameter
  • 8 Ohms
  • Pressed steel basket
  • Aluminum voice coil
  • Ferrite magnet
  • Paper cone
  • Cloth cone edge
  • Rubber boot
General Specifications
Nominal Basket Diameter 385 mm / 15 inch
Rated Impedance 8 ohm
Program Power 500 Watts
Power Handling Capacity 1000 Watts
Sensitivity 97 dB
Frequency Range 45 hz - 3 Khz
Magnet 80 Oz
190x85x20 mm / 7.5x3.3x0.8 inch
Effective Piston Diameter 330 mm / 13 inch
Minimum Impedance 5.3 ohm
Voice Coil Diameter 76.5 mm / 3 inch
Voice Coil Material Aluminum
Thiele - Small Parameters
Resonance Frequency fs 47 hz
DC Resistence re 5.3 ohm
Mechanical Factor Qms 3.3
Electrical Factor Qes 0.5
Total Factor Qts 0.44
BL Factor BL 15 T - m
Effective Moving Mass Mms 75 gr
Equivalent Cas Air Load Vas 150 liters
Maximum Linear Excursion Xmax 3.5 mm
Voice Coil Inductance @ 1kHz La1k 0.83 mH
Mounting Information
Overall Diameter 385 mm / 15.15 inch
Bolt Circle Diameter 370 mm / 14.566 inch
Bolt Hole Diameter 8.8x6.3 mm / 0.346x0.248 inch
Baffle Hole Diameter 354 mm / 13.93 inch
Depth 146 mm / 5.75 inch
Physical Information
Net Weight 7.25 Kg / 16 Lbs
