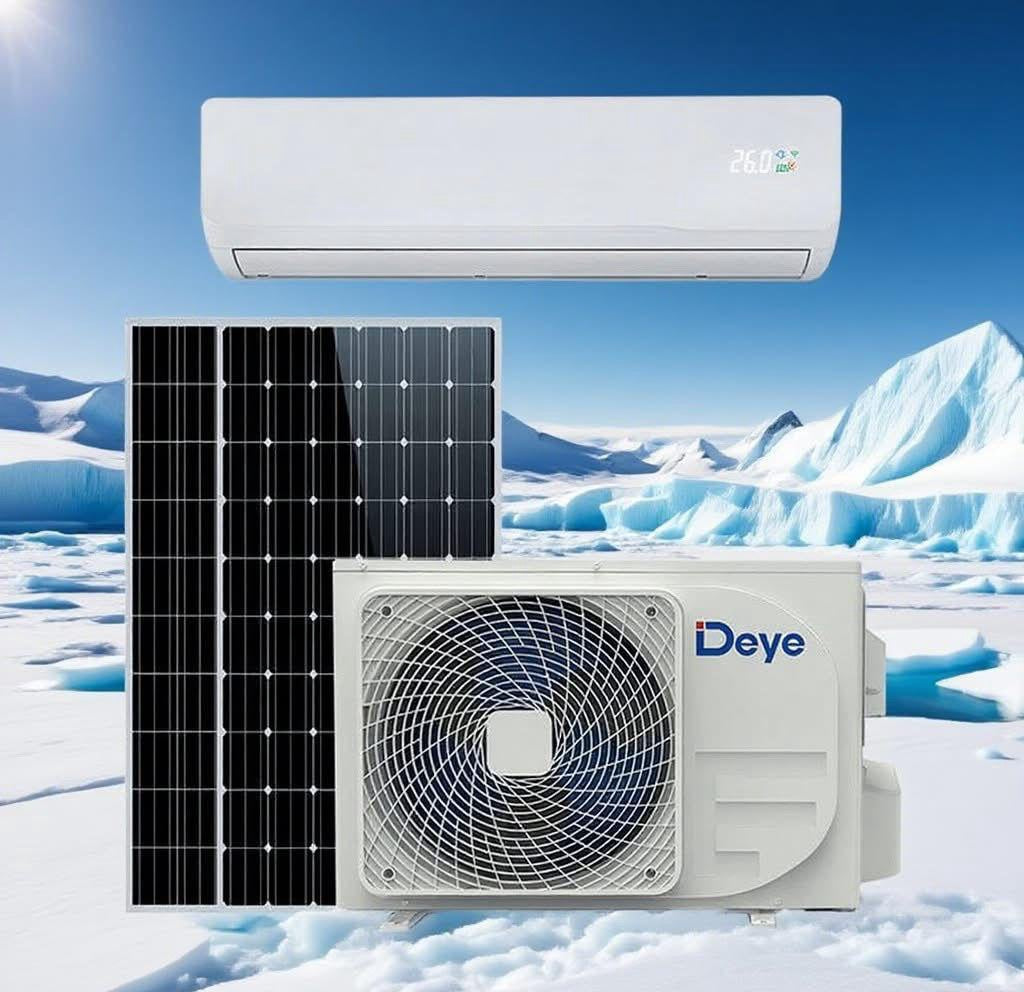

DEYE Air Conditioner Solar Hybrid AC/DC 12000BTU DY12K 220V Inverter Grid Tie with 2 Solar Panel RT9H700M-DG

G$333,700.00

Hybrid AC/DC Solar Air Conditioner

1.100% energy saving in day time. Only solar panel drive.

2.AC grid power limiter, limit AC power from 0-600W

3. Wifi control and APP power meter

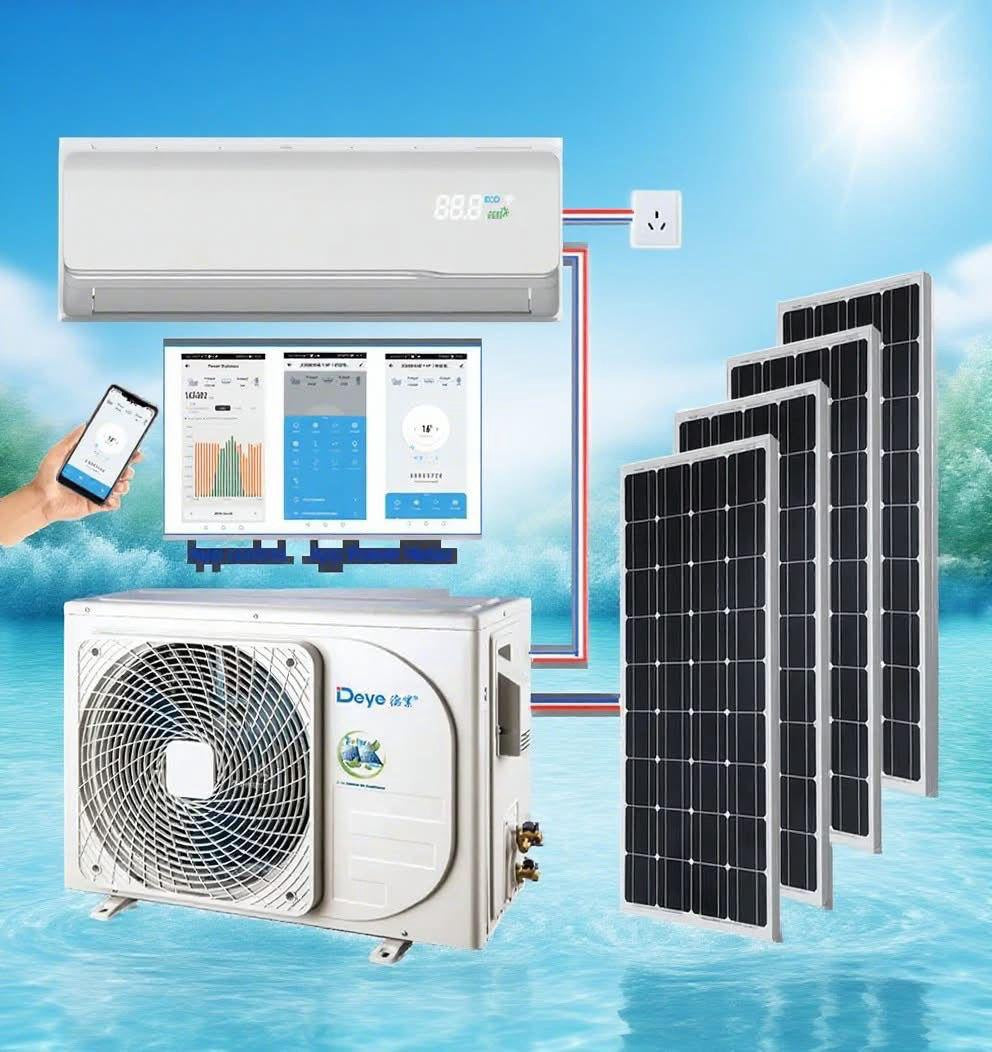

4.AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)

5.No inverter, no battery, no charge controller

6.Full DC driven

7.Wide operating temperature(-10℃ to 58 ℃)

8.Long warranty years

For more technical details pls contact: kevin.zhang@deye.com.cn

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

100% energy saving in day time. Only solar panel drive.
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature(-10℃ to 58 ℃)

T3/T1 Hybrid ACDC Solar Air Conditioner
Model	Unit		DGA2-ACDCBLW-12K	DGA1-ACDCBLW-18K	DGA1-ACDCBLW-24K
Climate Type	Tropical</= 58℃		T3/T1	T3/T1	T3/T1
Application area		m2	12-20	20-30	30-42
Power Supply	AC Power	Ph-V-Hz	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ
	DC Power (PV in Series)	V	80-380V	80-380V	80-380V
	DC Power Current	A	</=10A	</=10A	</=10A
Adviced Solar Panel		Pcs	(3-4)*330W in series	(3-6)*330W in series	(3-8)*330W in series
Rated Cooling	Capacity(T1)	W	3510(900-3900)	5070(1200-6000)	6450(1800-7900)
	Capacity(T1)	BTU	12000(3000-13300)	17300(4100-20400)	22000(6100-27000)
	Power input(T1)	W	940(190-1270)	1400(220-2100)	1790(300-3200)
	Capacity(T3)	W	2910	4290	5130
	Capacity(T3)	BTU	9900	14700	17500
	Power input(T3)	W	1050	1630	1940
Rated Heating	Capacity	W	4100(1000-4500)	6100(1200-6800)	7800(1800-9100)
	Capacity	BTU	14000(3000-15300)	20800(4100-23000)	26600(6100-31000)
	Power input	W	1170(190-1700)	1770(220-2500)	2290(300-3500)
T1 EER (W/W)/ (BTU/W)		/	3.75/12.75	3.60/12.35	3.60/12.30
T3 EER (W/W)/ (BTU/W)		/	2.75/9.45	2.65/9.00	2.65/9.00
COP (W/W)/ (BTU/W)		/	3.50/11.95	3.45/11.75	3.40/11.60
Dehumidification capacity		L/h	1.3	1.7	2.5
Compressor	Model	/	WHP04200	WHP05600	5RD198
	Type	/	2xRotary Inverter	2xRotary Inverter	2xRotary Inverter
	Brand	/	Highly	Highly	Panasonic
Indoor fan motor	Model		BLDC-15W	BLDC-45W	BLDC-45W
Indoor fan motor	Speed(Turbo/Hi/Mi/Lo)	r/min	1300/1200/1100/950	1050/950/850/750	1350/1250/1150/1000
Indoor air flow(Turbo/Hi/Mi/Lo)		m3/h	540/485/435/350	980/880/740/620	1290/1180/1070/900
Indoor noise level (Turbo)		dB(A)	≤42.5	≤46	≤50
Indoor unit	Dimension(W×H×D)	mm	840×205×295	1080×330×237	1080×330×237
	Packing (W×H×D)	mm	920×290×360	1140×300×382	1140×300×382
	Net weight/Gross weight	Kg	9.0/12.5	15.0/18.5	15.0/18.5
Outdoor fan motor	Model	/	BLDC-40W	BLDC-55W	BLDC-75W
Outdoor fan motor	Speed	r/min	880	880	850
Outdoor air flow		m3/h	2100	2200	3300
Outdoor noise level		dB(A)	≤52	≤55	≤58
Outdoor unit	Dimension(W×H×D)	mm	802×564×323	802×564×323	900×700×337
	Packing (W×H×D)	mm	910×622×405	910×622×405	1006×755×418
	Net/Gross weight	Kg	33.5/37.5	37/42.0	50/54.5
Refrigerant type		/	R410A	R410A	R410A
Max Design pressure		MPa	4.3/1.5	4.3/1.5	4.3/1.5
Refrigerant copper pipe	Gas side/Liquid side (inch)	inch	3/8 1/4	1/2 1/4	1/2 1/4
	Max. refrigerant pipe length	m	15	20	25
	Max. difference in level	m	8	10	10
Drain pipe size		mm	16	16	16
Refrigerant connction copper pipe length		m	3	4	4
Connection wire length		m	4	5	5
Electronic Expansion Valve		/	Yes	Yes	Yes
Loading QTY 40" Hq/ 20"GP		Sets	200/85	160/75	115/50
