- High quality transducers for best-in-class acoustic performance
- EAW Focusing for unmatched clarity and accuracy
- Rotatable MK inspired horn for EAW signature pattern control

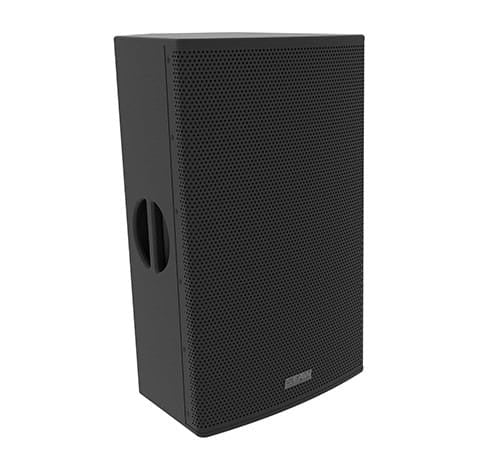

- Lightweight and durable wooden enclosure with M10 threaded suspension points

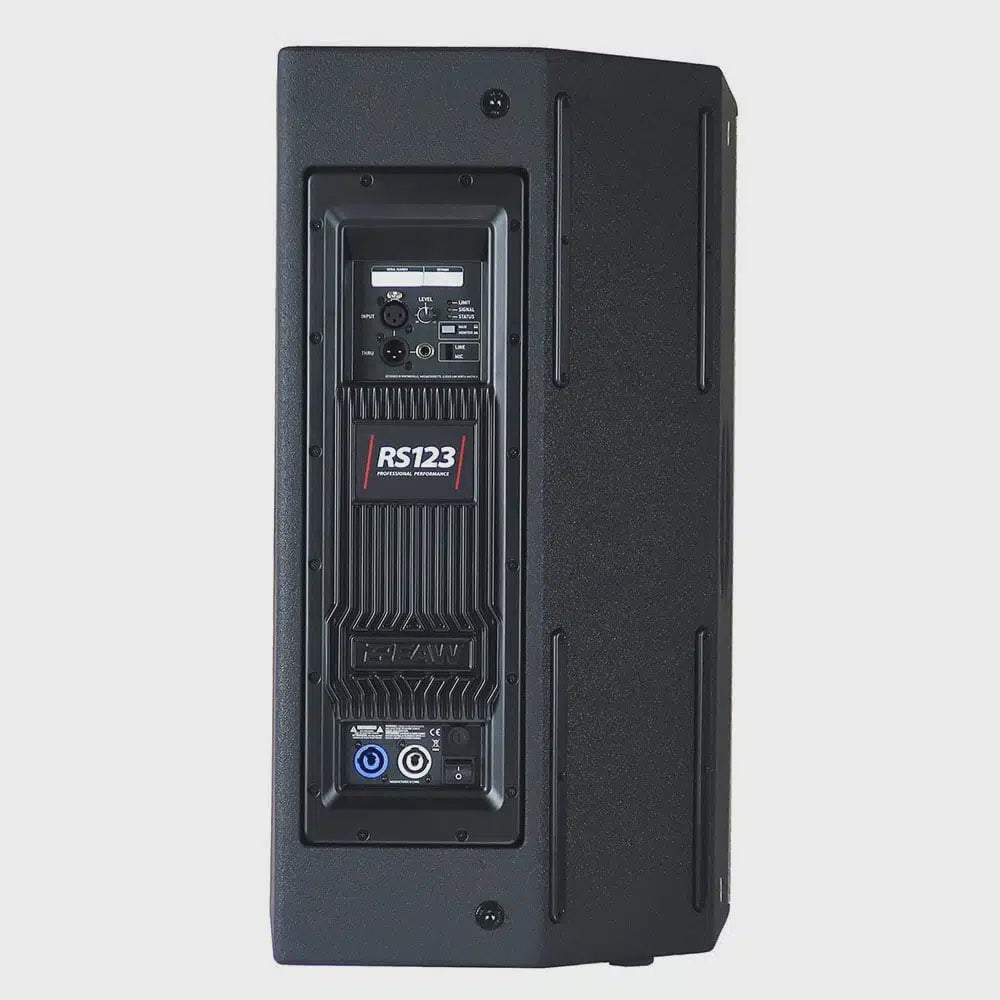

The lightweight and durable wooden enclosure has been meticulously designed to eliminate resonance and houses onboard bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Our Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.
Applications
- Houses of Worship
- Theatres, Auditoria and Performing Arts Centers
- Live Music Clubs
- Corporate AV Houses
- Live Production/Regional Rental Houses
- Dry Hire
Specifications
Frequency Response
55 Hz – 20 kHz
Max SPL
138dB
Operating Mode
Bi-Amp LF, HF
Subsystem
12 in Cone, 2.5 in Voice Coil
3 in Voice Coil Neodymium Compression Driver, 1.4 in Exit
Nominal Beamwidth
90° Horizontal
60° Vertical
60° Vertical
Power Handling
1500W
Connections
Neutrik PowerCON®
XLR Input/Loop
Dimensions
Height: 25.9 in
Width: 14.5 in
Depth: 15 in
Weight
42lb (19kg)
