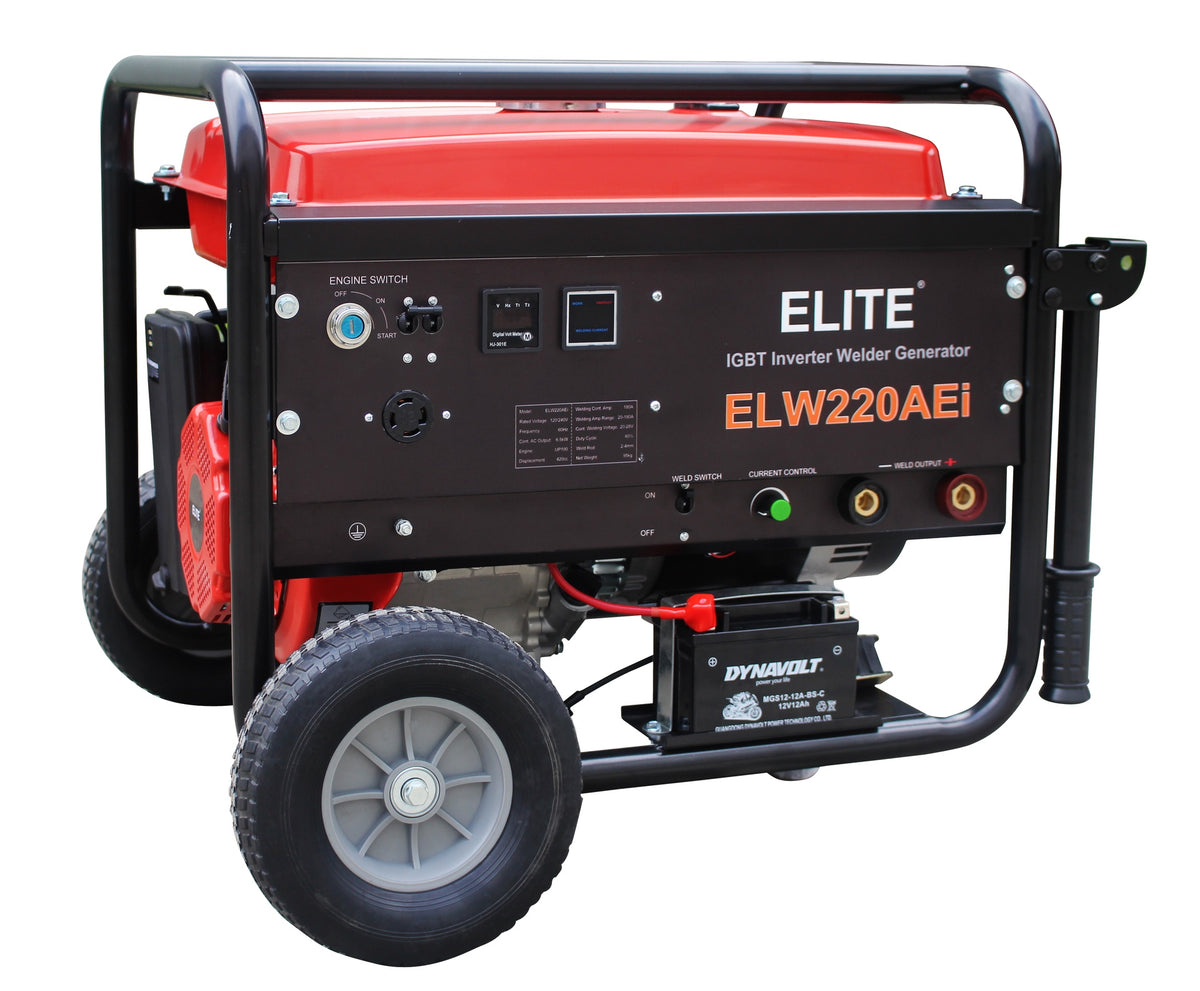

ELITE Generator 7000W ELW220AEI Gas Welder

ELW220AEi ELITE GASOLINE IGBT INVERTER WELDER/GENERATOR

FEATURES AND BENEFITS

•Inverter Technology for Most Stable Output
•Less Weld Spatter
•Neater Weld Beads
•Electric Start
•Durable Wheel Kit
•Digital Voltmeter and Weld Current Meter
•Large Fuel Tank for Longer Continuous Operation
•Large Muffler for Less Noise
•Auto Shutdown for Low Oil
•Parts and Service Availability

TECHNICAL SPECIFICATIONS
Model:
ELW220AEi Frequency (Hz):
60 Hz Rated AC Output (KW):
6.5 KW Max. AC Output (KW):
7.0 KW AC Output Voltage (V):
120V/240V Cont. Weld Voltage (V):
20V-28V Cont. Weld Current (A):
180A Unloaded Weld Voltage (V):
75V-85V Weld Current Adjustable Scope (A):
20-190A Weld Cont. Load Rate:
60% Fuel Tank Capacity (L):
25 L Displacement (cc):
420cc Max. Engine Output (HP):
14.0 HP Dimensions (mm):
717mm x 555mm x 592mm Oil Type:
SAE 10W-30
