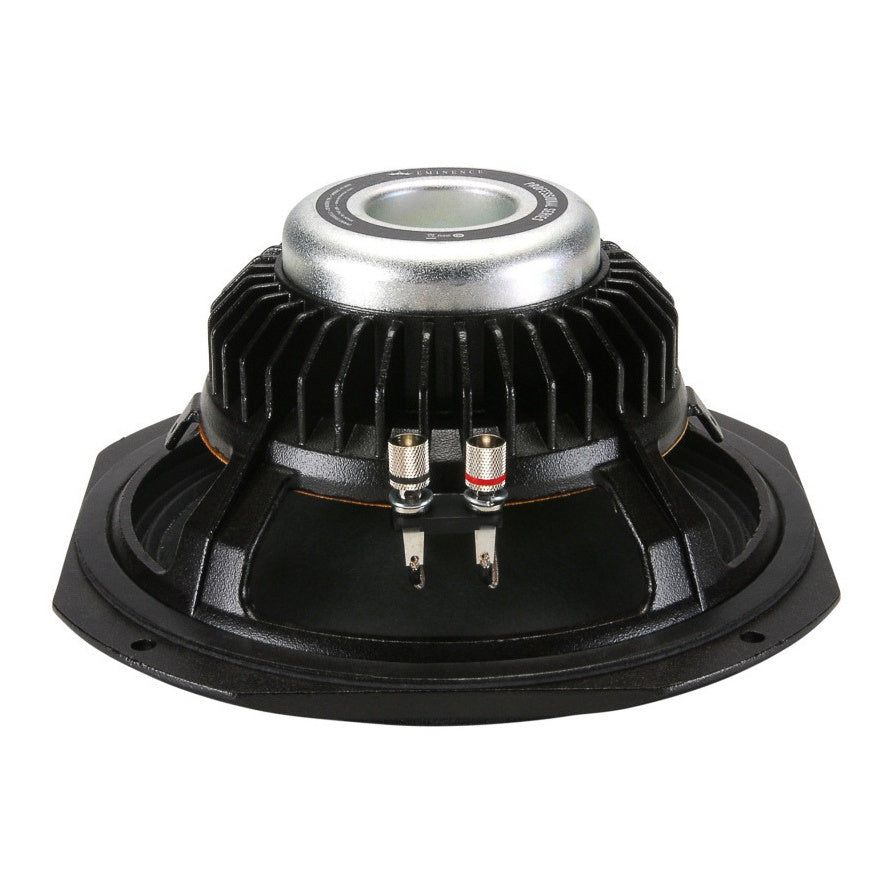

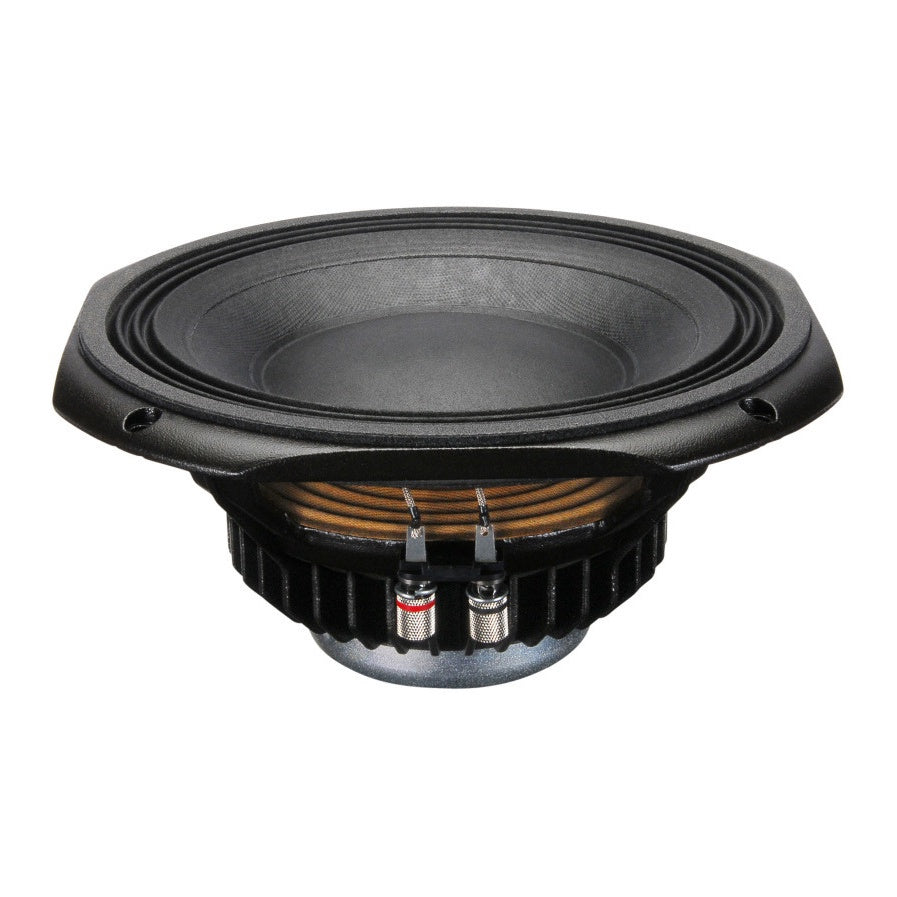

EMINENCE Speaker 10" Kappalite 3010LF EMINENCE Speaker 10" Kappalite 3010LF

EMINENCE Speaker 10" Kappalite 3010LF

G$49,250.00

Eminence KAPPALITE 3010LF

High power subwoofer recommended for vented and horn loaded enclosures.

Specifications

Sensitivity (1w, 1m, infinite baffle)
SPL1W
92.6
dB
Frequency response
42 - 1600
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
39.0
Hz
Mechanical quality factor
QMS
11.75
Electrical quality factor
QES
0.28
Total quality factor
QTS
0.27

Large signal parameters

Maximum linear excursion
xmax
8.52
mm
Maximum excursion before damage
xlim
15.7
mm
Air volume displaced at xmax
VD
305
cm³
Power handling
P
450
W
Program power
Pmax
900
W

Voice Coil

Nominal impedance
Z
8
Ω
DC resistance
RE
7.2
Ω
Inductance (1kHz)
LE
1.13
mH
VC Diameter
76
mm
Winding material
Copper
Former material
Polyimide

Magnet

Force factor
Bl
17.45
N/A
Motor constant
Bl/√RE
6.5
N/√W
Air gap height
HAG
9.3
mm
Weight
0.31
kg
Material
Neodymium

Diaphragm

Effective diameter
214
mm
Effective area
SD
358
cm²
Moving mass
MMS
49
g
Moving mass (without air load)
MMD
43.8
g
Material
Treated Paper

Suspensions

Stiffness
KMS
2.86
N/mm
Compliance
CMS
350
µm/N
Equivalent volume to the compliance
VAS
62.4
L
Mechanical resistance
RMS
1.02
N·s/m
Surround material
Cloth

Dimensions

Nominal diameter
10
″
254
mm
Overall diameter
284
mm
Baffle cutout diameter
284
mm
Overall depth
127
mm
Volume occupied by the driver
1.06
L
Net weight
3.45
kg
Frame material
Die Cast Aluminum
