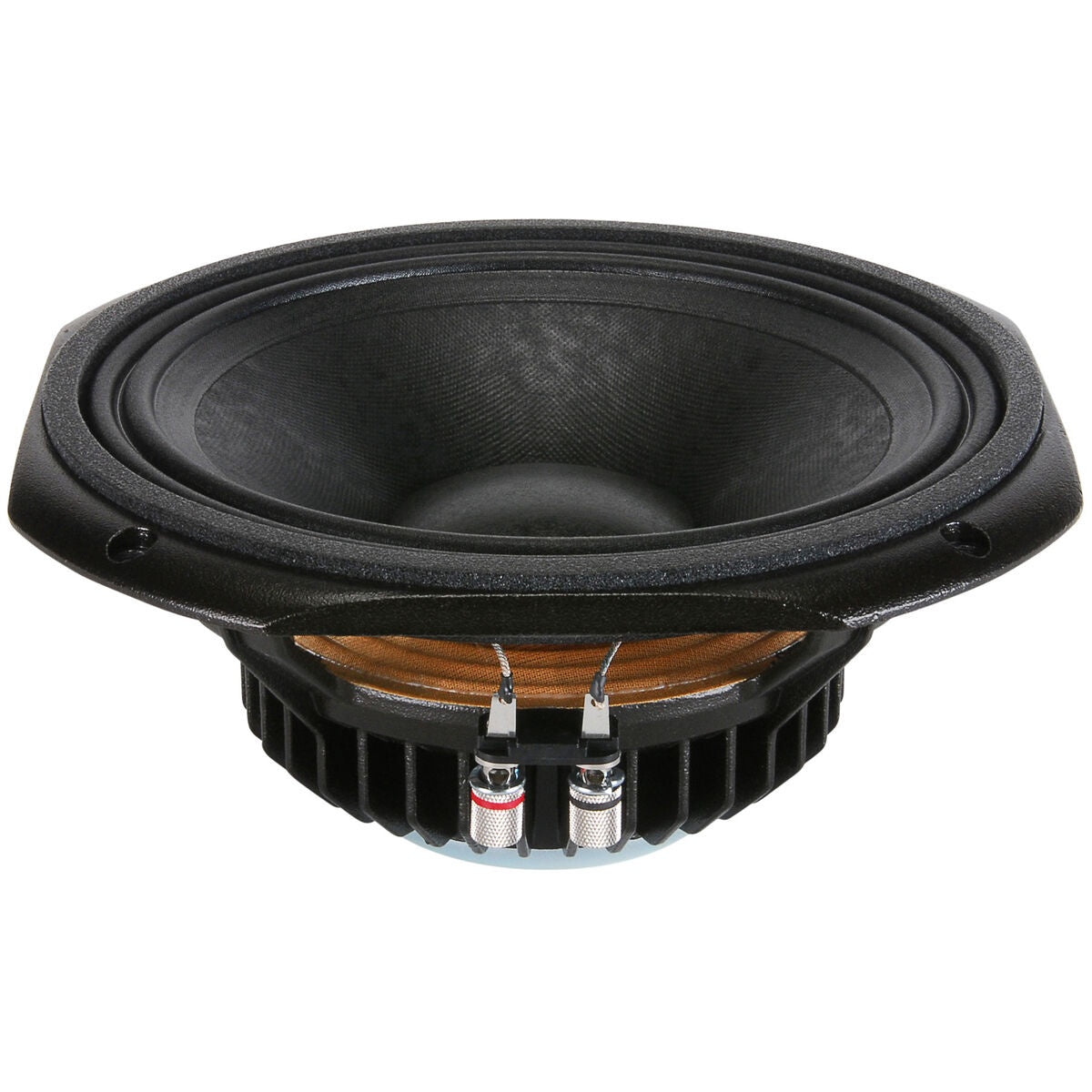

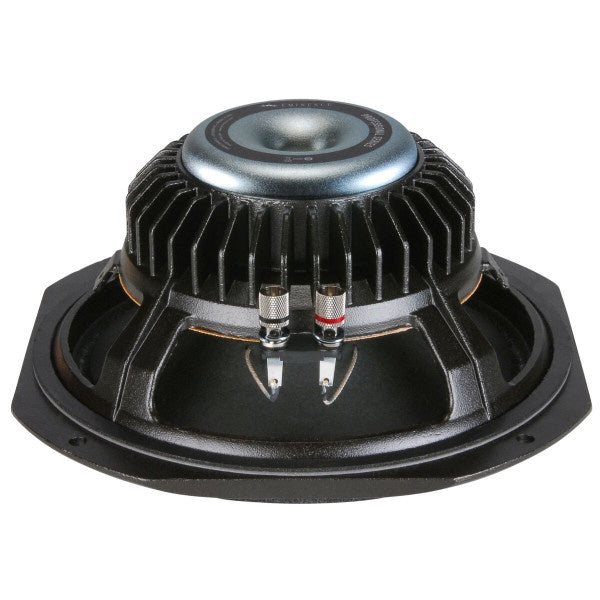

EMINENCE Speaker 10" Kappalite 3010MB

KAPPA LITE 3010MB - 10" MID-BASS / MIDRANGE SPEAKER

THE EMINENCE KAPPA LITE 3010MB  IS A LIGHTWEIGHT 10" MI-BASS / MIDRANGE SPEAKER THAT HANDLES 400 WATTS RMS & 800 WATTS PROGRAM
HIGH EFFICIENCY OF 98.6DB SPL & A 5.0MM XMAX FOR A CLEAN STRONG BASS SOUND WITH FLAT SMOOTH MIDS
FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET THAT WEIGHS ONLY 7.1LBS
STRONG DIE-CAST ALUMINUM BASKET
DESIGNED FOR HIGH POWER MID-BASS PORTED CABINETS & AS A MIDRANGE SPEAKER IN A SEALED CABINET
THE EMINENCE KAPPALITE 3010MB DELIVERS LOUD MIDS & TIGHT BASS W/ HIGH EFFICIENCY OF 98.6DB SPL & HANDLES 800 WATTS PROGRAM!

SPECIFICATIONS

Nominal Basket Diameter

10" / 254mm

Impedance

8 ohms

RMS Power Rating

400 Watts

Program Power Rating    800 Watts
Frequency Response

85Hz - 3.6kHz

Sensitivity    98.6dB SPL
Voice Coil Diameter

3" / 76.2mm

Magnet Weight

11 oz.

Rec. Enclosure Volume(Sealed)    .55-1.55cu. ft./15.57-43.89 Liters
Rec. Enclosure Volume(Vented)    .7-2.25cu. ft./19.82-63.71 Liters
MOUNTING INFORMATION

Overall Diameter    11.18" / 283.87mm
Bolt Circle Diameter    10.49" / 266.45mm
Baffle Cutout Diameter    9.12" / 231.65mm
No. Of Mounting Holes    4
Mounting Hole Diameter    0.29" / 7.39mm
Overall Depth    4.61" / 117.09mm
Net Weight    7.6 lbs. / 3.22kg.
Shipping Weight    8.7 lbs. / 3.95kg.
MATERIALS
Cone    Treated Paper
Former Material    Polyimide
Voice Coil    Edge Wound Copper
Magnet    Neodymium
Vented Motor    Core
Basket    Die-Cast Aluminum
Surround    Sealed Cloth
Dust Cap    Treated Paper
THIELE-SMALL PARAMETERS

Resonant Frequency (fs)    50.68 Hz
Impedance (Re)    5.01 ohms
Coil Inductance (Le)    .68mH
Electromagnetic Q (Qes)    .21
Mechanical Q (Qms)    6.83
Total Q (Qts)    .2
Moving Mass (Mms)    35.52 grams
Compliance Suspension (Cms)    .28mm/N
Compliance Equivalent Vol. (Vas)    52.1 Liters/1.84cu. ft.
Voice Coil Overhang (Xmax)    5.0mm
Surface Area of Cone (Sd)    .03661m2
BL Product (BL)    16.51 T-M
Peak Diaphragm Displacement Volume(Vd)    183.1cc
