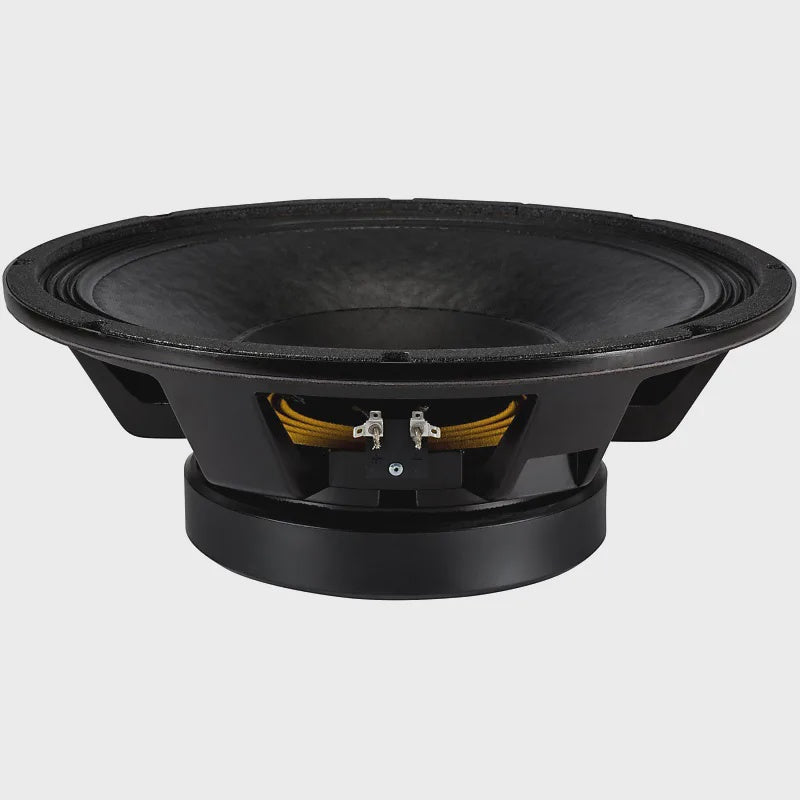

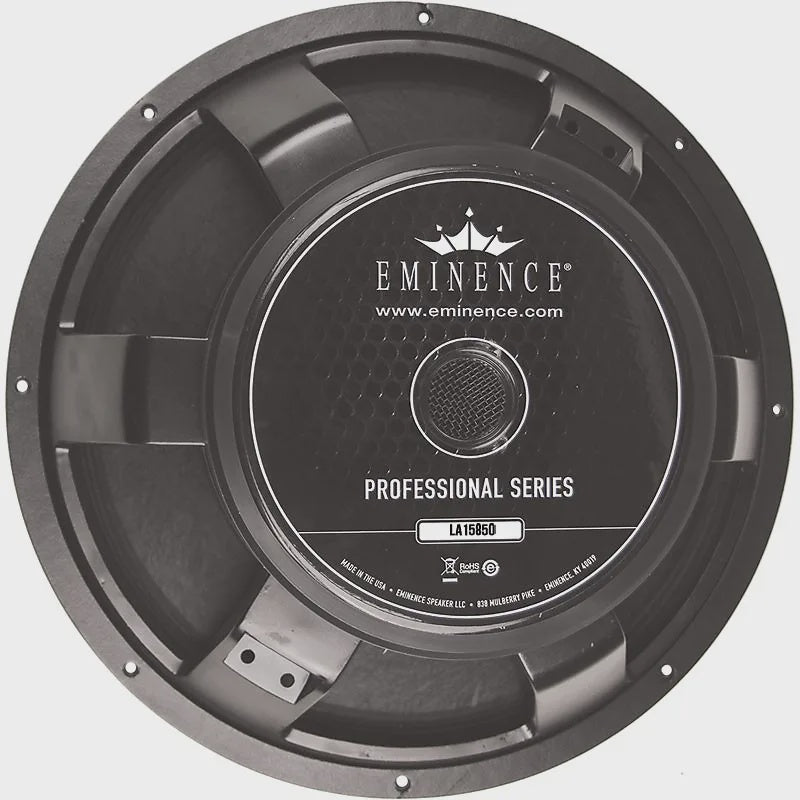

EMINENCE Speaker 15" LA15850 EMINENCE Speaker 15" LA15850

EMINENCE Speaker 15" LA15850

G$41,840.00

Eminence LA15850 Professional Series 15" 8 ohm 800 watt Speaker

Eminence LA15850 Professional Series15" 8 ohm 800 watt Speaker. Eminence's thinnest 15” cast frame woofer features an inverted dust cap for close placement to phase plugs used in many horn loaded designs. Also suitable as a high power mid/bass driver in small conventional vented enclosures.

  • Nominal Diameter15"
  • Power Handling (RMS) 800 Watts
  • Power Handling (max) 1,600 Watts
  • Impedance 8 ohms
  • Frequency Response 45 to 1,500 Hz
  • Sensitivity 96.2 dB 1W/1m
  • Voice Coil Diameter 4"
  • Magnet Weight 109 oz

Specifications

General
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
4 "
Voice Coil
102 mm
Overall diameter
388,6 mm
Pitch Circle Diameter
370.1 mm
Cut- out Measurement
357.6 mm
Diameter of fixing holes
6.5 mm
Depth
139.7 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
800 W
Sensitivity (1 W / 1 m)
96.2 dB
Frequency response
45 - 1500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.5 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
34 Hz
Re (DC resistance)
5.83 Ohm(s)
Qms (mechanical quality)
9.27
Le (inductance of the voice coil)
1 mH
Qes (electrical quality)
0.34
Qts (overall quality)
0.33
Vas (equivalent volume)
234.15
Mms (moving mass)
98 g
BL (power factor)
18.98 T/m
Xmax (maximum displacement)
4.1 mm
Cms (elasticity of the suspension)
0.23 mm/N
Sd (membrane area)
856.3 cm²
Weight
10,7 kg
