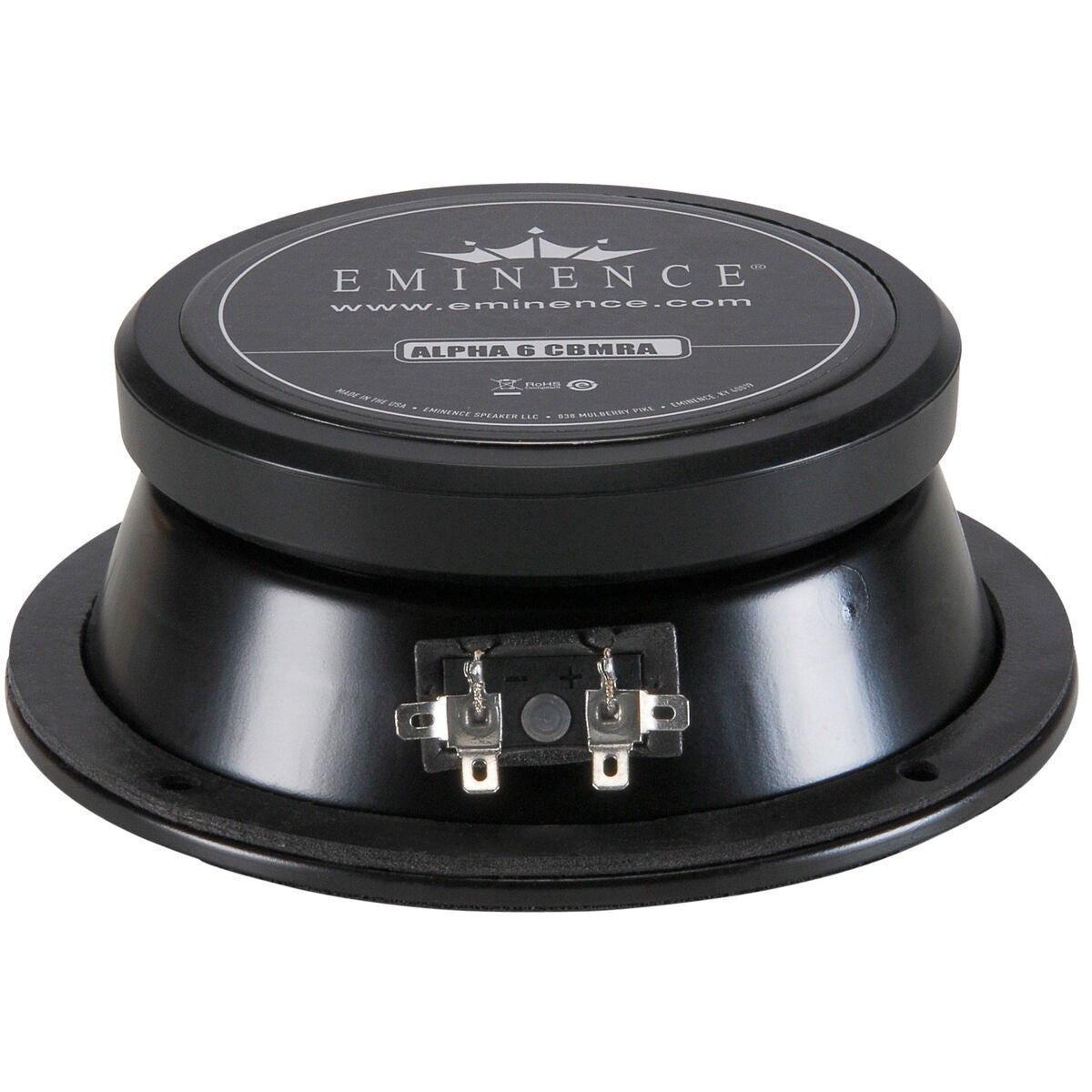

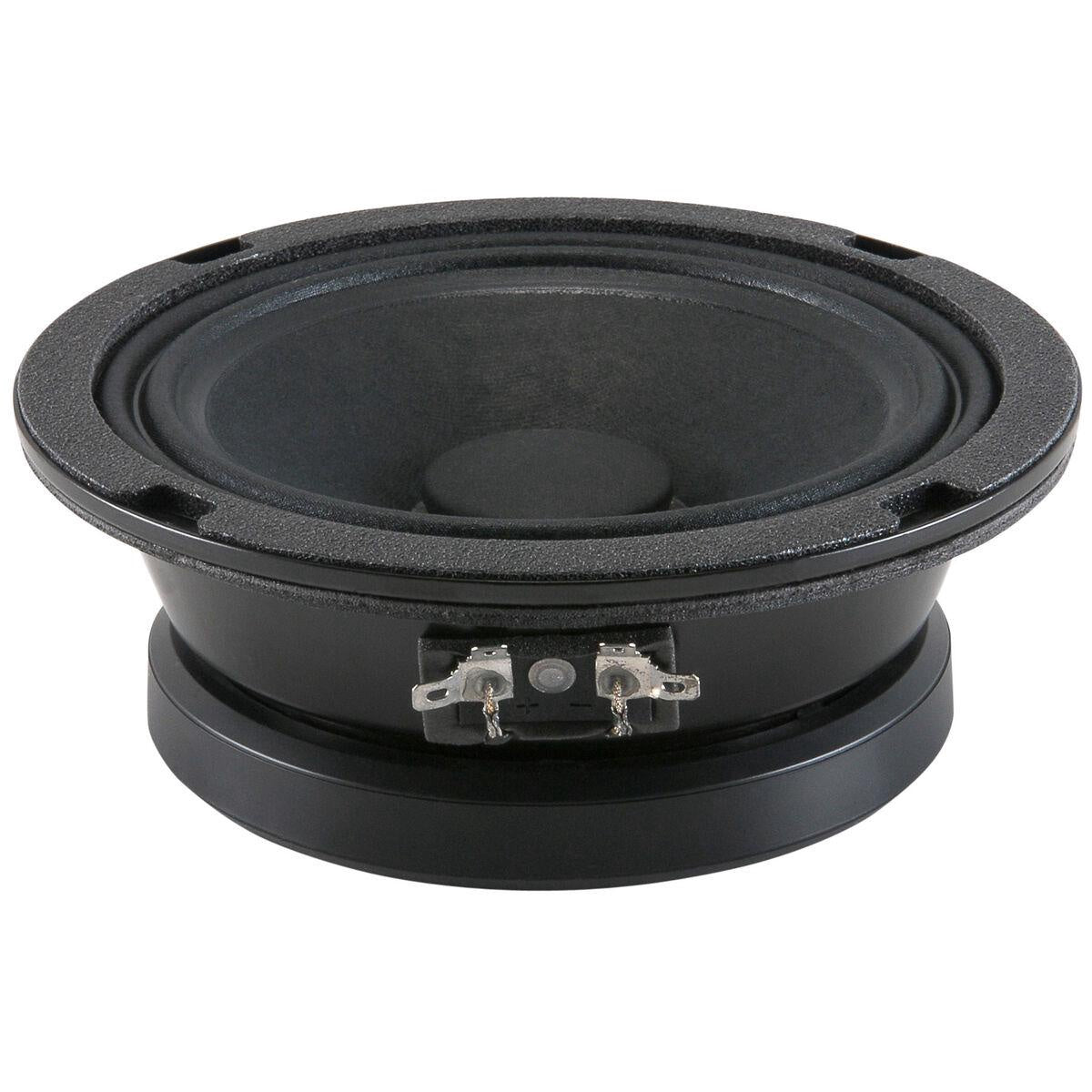

EMINENCE Speaker 6" ALPHA-6CBMR Seal Back

G$11,840.00

The Eminence Alpha-6CBMRA sealed-back 6-1/2" midrange is perfect for pro audio, car audio, and bass guitar midrange applications.

Key Features

Sealed back speaker basket for use in multi-way cabinets with sub-enclosures.
Perfect for use as a high output car audio door speaker
Features the Eminence Alpha family sound
High 100W RMS power handling
Eminence Alpha-6CBMRA 6-1/2" Ferrite Sealed Back Midrange Speaker Driver

Based on the ever-popular Alpha 6 series, Eminence's 6-1/2" sealed-back Alpha-6CBMRA midrange speaker is built with a closed basket design to prevent interference from other drivers in a speaker cabinet without the need for a separate sub-enclosure.

The Alpha-6CBMRA features the standard paper cone, cloth accordion surround, and solid composition paper dust cap of the other Alpha drivers for a consistent family sound. Use this midrange in professional 3-way live sound cabinets, as a high output car audio door speaker, or as a midrange in a bass guitar speaker.


Resonant Frequency (Fs)	407Hz
DC Resistance (Re)	5.26Ω
Voice Coil Inductance (Le)	0.38mH
Mechanical Q (Qms)	6.04
Electromagnetic Q (Qes)	1.74
Total Q (Qts)	1.35
Compliance Equivalent Volume (Vas)	0.02ft³
Mechanical Compliance of Suspension (Cms)	0.02mm/N
BL Product (BL)	7.86T·m
Maximum Linear Excursion (Xmax)	1.5mm
Surface Area of Cone (Sd)	8.13cm²
