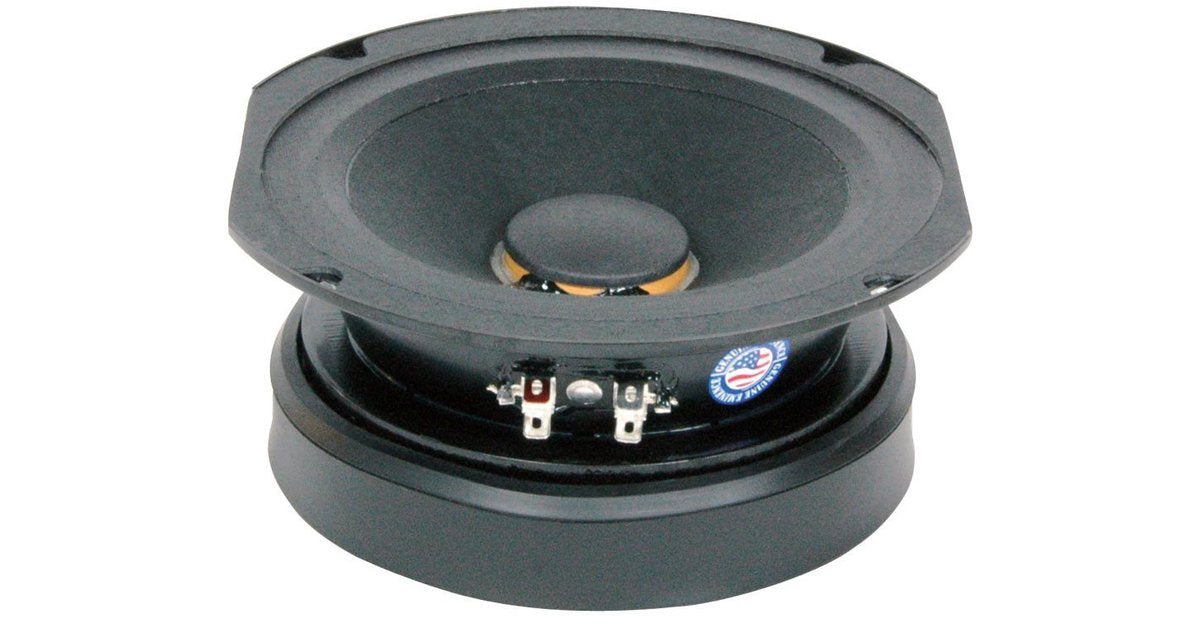

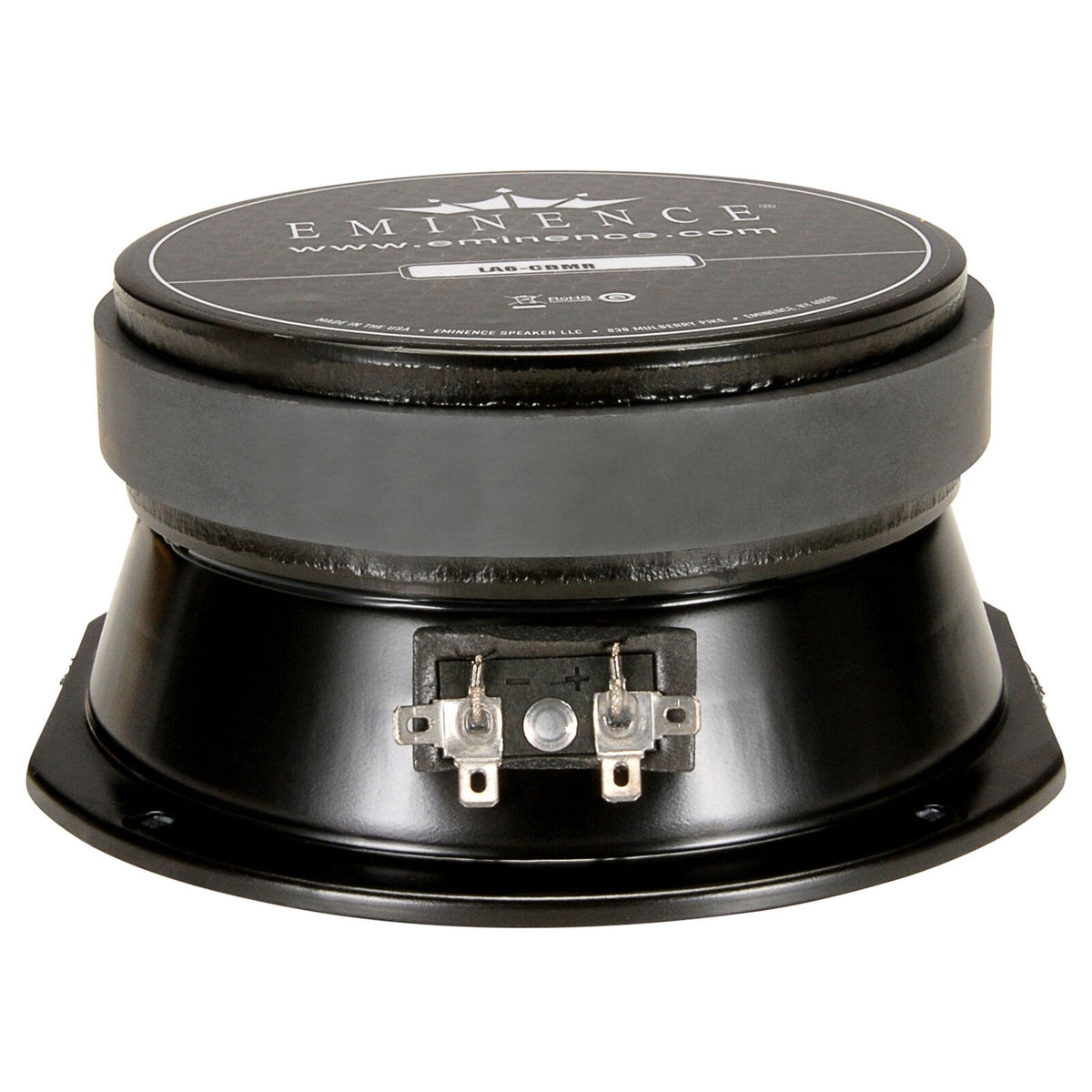

Eminence LA6-CBMR6.5" Woofer for Line-Array Applications

Recommended for pro audio midrange applications from 500Hz-3kHz. Features a closed truncated basket for close spacing in line-arrays.

Specification

Nominal Basket Diameter 6.5", 165mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 150W

Music Program 300W

Resonance 460Hz

Usable Frequency Range 500Hz - 5.4kHz

Sensitivity*** 97.8dB

Magnet Weight 38 oz.

Gap Height 0.31", 7.92mm

Voice Coil Diameter 1.5", 38.1mm

Mounting Information

Recommended Enclosure Volume

Sealed Acceptable

Vented Acceptable

Driver Volume Displaced 38.1 cu.in. / 0.62 liters

Overall Diameter 6.59", 167mm

Baffle Hole Diameter 5.65", 143.5mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket N/A

Mounting Holes Diameter 0.23", 5.7mm

Mounting Holes B.C.D. 6.06", 154mm

Depth 2.77", 70mm

Net Weight 6.7 lbs, 3 kg
