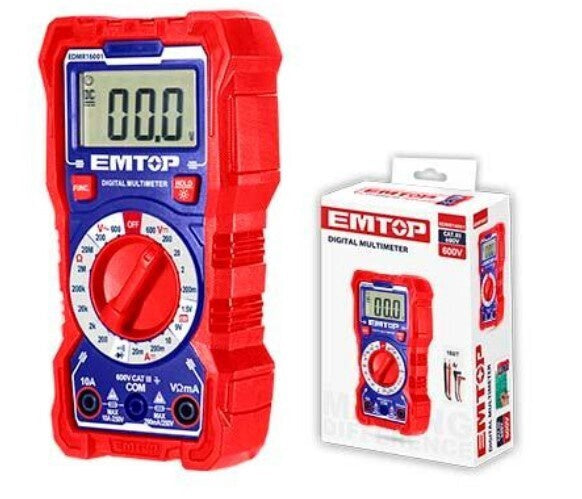

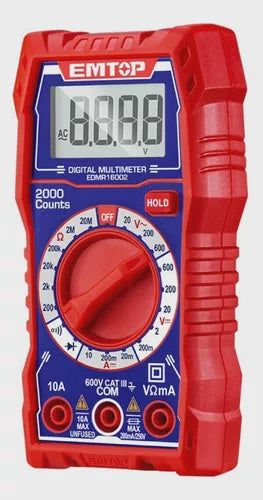

[EDMR16002] - DIGITAL MULTIMETER WITH LCD DISPLAY, AC VOLTAGE 200V/600V, DC VOLTAGE 200MV/600V. EMTOP BRAND

• CODE: EDMR16002
• LCD Digital Multimeter
• DC voltage: 200mv/2v/20v/200v/600v, accuracy +- (1.0 percent readings +5)
  Overload protection 600V; maximum input voltage: 600V
• AC voltage: 20v/200v/600/accuracy +- (1.0 percent readings +5)
  Overload protection 600V; Maximum input voltage: 600V
  Frequency response: 40Hz-400Hz
• DC current: 20ma/200ma/10apressure +- (1.5 percent readings +5)
  Overload protection mA: F200mA/250V fuse
  A: No fuse
  Maximum input current: mA:200mA; A:10A
  When measuring large current, continuous measurement should last more than 15 seconds
• Resistance: 200ω/ 2kω / 20kω / 200kω / 2mω / 20mω accuracy +- (1.2 percent reading +5)
• Continuity and diode: resistance is >50, buzzer will sound
  Open circuit voltage is about 2V
  Overload protection: 250V
• Displays the approximate forward voltage of the diode.
  Reverse DC voltage is approximately 2 V. Overload protection 250 V
