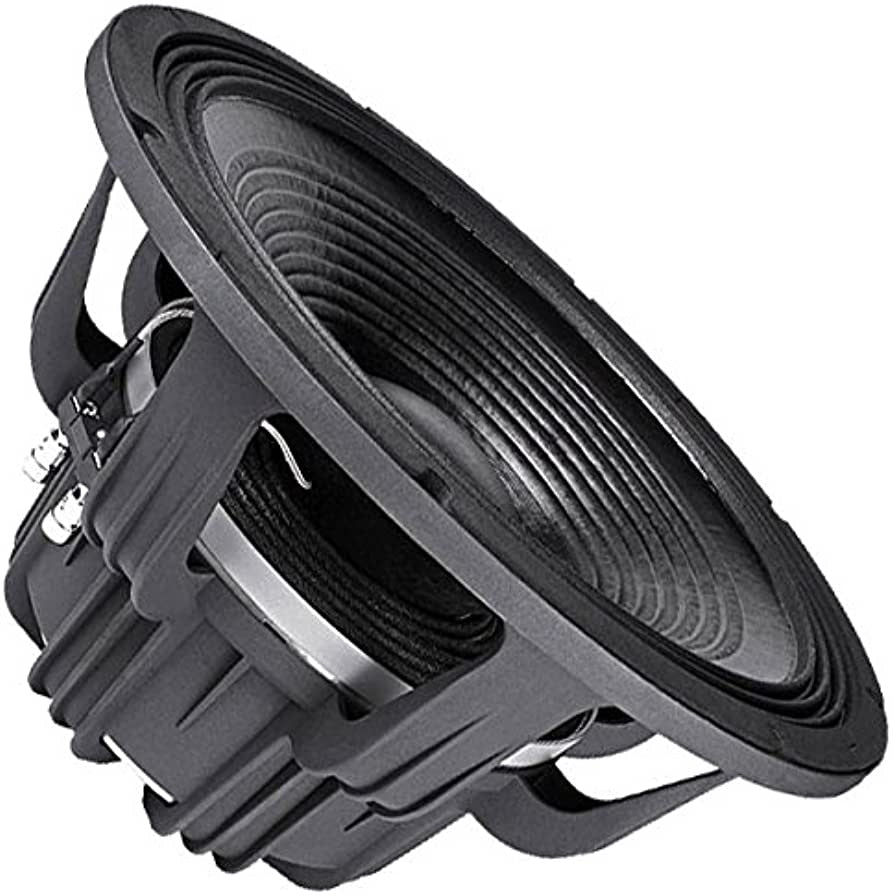

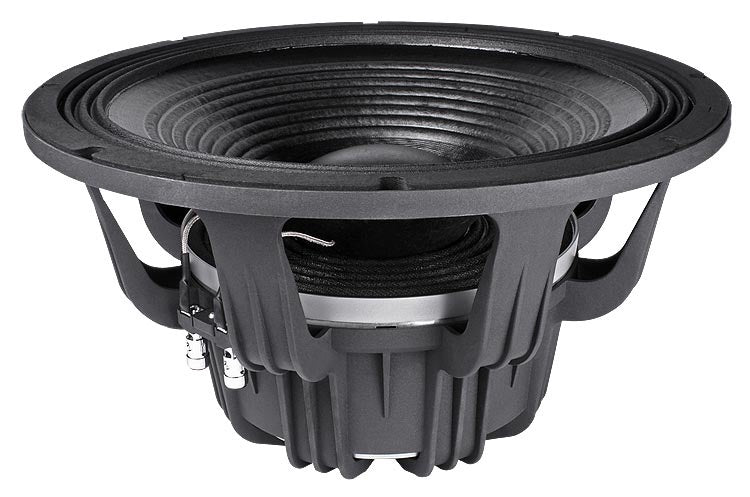

FAITAL PRO Speaker 15" 15XL1400-8 8OHMS FAITAL PRO Speaker 15" 15XL1400-8 8OHMS

FAITAL PRO Speaker 15" 15XL1400-8 8OHMS

G$148,190.00

15XL1400{ 15" - 1400 W - 96 dB - 8 Ohm }

NOMINAL SPECIFICATIONS
Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 354 mm (13.94 in)
Depth 217 mm (8.54 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 11.8 kg (25.9 lb)
Shipping Box
(Single Carton Box)		 422 x 417 x 264 mm
(16.6 x 16.4 x 10.4 in)
Shipping Weight 13.5 kg (29.8 lb)


TECHNICAL PARAMETERS
Nominal Impedance 8 Ohm
Minimum Impedance 7.4 Ohm
AES Power Handling (1) 1400 W
Maximum Power Handling (2) 2800 W
Sensitivity (1W/1m) 96 dB
Frequency Range 40÷2500 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 31 mm (1.22 in)
Magnetic Gap Depth 15.5 mm (0.61 in)
Flux Density 1.05 T
Magnet Neodymium Slug Crown
Basket Material Aluminum
Demodulation Triple Al Dem. Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 6 dm^3 (0.212 ft^3)
Spider Profile 2x non-adjacent symmetrical constant height waves
THIELE AND SMALL PARAMETERS
Fs 38 Hz
Re 5.4 Ohm
Qes 0.34
Qms 10.4
Qts 0.33
Vas 91.2 dm^3 (3.22 ft^3)
Sd 841 cm^2 (130.36 in^2)
Xmax (4) 12.92 mm
Xdamage (5) 28 mm
Mms 190.0 g
Bl 26.7 N/A
Le 1.6 mH
Mmd 162.4 g
Cms 0.09 mm/N
Rms 4.4 kg/s
Eta Zero 1.41 %
EBP 112 Hz


PART NUMBER (P/N)
Push Terminals - 8 Ohm Version 03804008



NOTES:
PATENT PENDING
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Treated Polycotton
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
