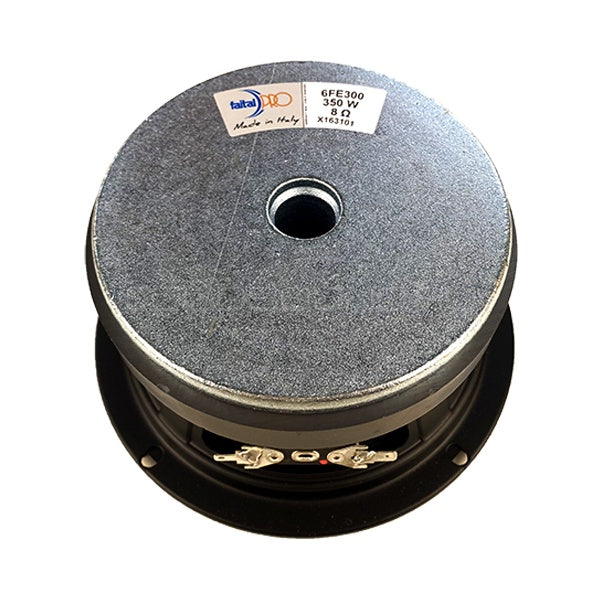

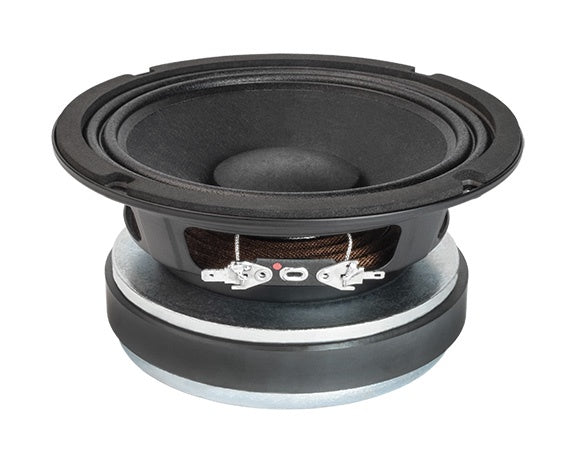

FAITAL PRO Speaker 6" 6FE300-8 8OHMS FAITAL PRO Speaker 6" 6FE300-8 8OHMS

FAITAL PRO Speaker 6" 6FE300-8 8OHMS

G$14,250.00

6FE300{ 6" - 175 W - 94 dB - 8 Ohm }

NOMINAL SPECIFICATIONS
Nominal Diameter 160 mm (6 in)
Overall Diameter 166.5 mm (6.56 in)
Bolt Circle Diameter 155 mm (6.10 in)
Baffle Cutout Diameter 146 mm (5.75 in)
Depth 81 mm (3.19 in)
Flange and Gasket Thickness 7 mm (0.28 in)
Net Weight 2.8 kg (6.2 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 103 mm
(7.48 x 7.28 x 4.05 in)
Shipping Weight 3 kg (6.6 lb)


TECHNICAL PARAMETERS
Nominal Impedance 8 Ohm
Minimum Impedance 6.5 Ohm
AES Power Handling (1) 175 W
Maximum Power Handling (2) 350 W
Sensitivity (1W/1m) 94 dB
Frequency Range 90÷4000 Hz
Voice Coil Diameter 52 mm (2.05 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 9.8 mm (0.39 in)
Magnetic Gap Depth 6 mm (0.24 in)
Flux Density 1.15 T
Magnet Ferrite Ring
Basket Material Steel
Demodulation No
Cone Surround (3) M-Roll
NET Air Volume filled by Loudspeaker 0.6 dm^3 (0.021 ft^3)
Spider Profile 1x constant height waves
THIELE AND SMALL PARAMETERS
Fs 100 Hz
Re 5.3 Ohm
Qes 0.48
Qms 10.5
Qts 0.46
Vas 4.7 dm^3 (0.17 ft^3)
Sd 138 cm^2 (21.39 in^2)
Xmax (4) 3.90 mm
Xdamage (5) 13.1 mm
Mms 14.2 g
Bl 10 N/A
Le 0.4 mH
Mmd 12.4 g
Cms 0.18 mm/N
Rms 0.8 kg/s
Eta Zero 0.97 %
EBP 208 Hz


PART NUMBER (P/N)
Faston Terminals - 8 Ohm Version 01604323



NOTES:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Treated Polycotton
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
