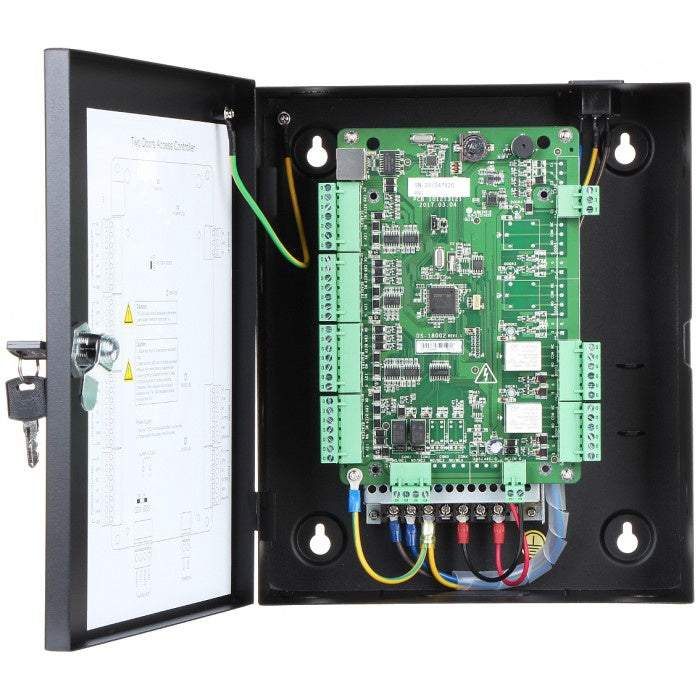

HIKVISION Security Access Control Access Controller DS-K2802 O-STD 2 Door Wiegand Board

G$33,870.00

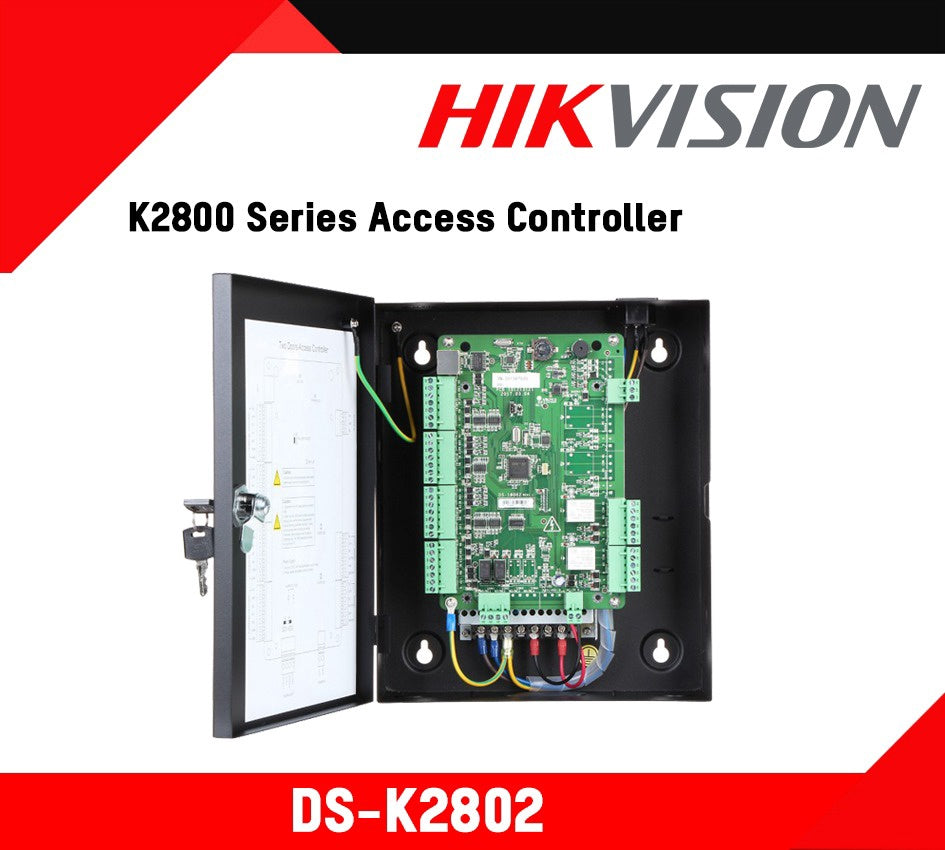

HIKVISION DS-K2800 Series Access Controller Model DS-K2802

roduct details

DS-K2802 (DS-K2800 Series Access Controller)

System Parameters
Storage:		10,000 valid cards and 50,000 card swiping records
Processor:		32-bit
Device Interfaces
Input Interface:		Door Sensor×4, Exit Button×4, Case Input×4
Downlink Communication Interface:		Wiegand (W26/W34)
Uplink Communication Interface:		TCP/IP Network Interface
Output Interface:		Lock Relay × 4, Alarm Relay × 4
Accessible Card Reader:		4 Card Readers (Wiegand Interface) Connectable

General
Working Voltage:		DC 12V
Power Dissipation (with Load):		≤100W
Power Consumption:		≤3.5W（without load）
LED Indicator:		Power Supply Status, Communication Status, Abnormal Status
Certification:		CE, FCC
Working Humidity:		10% to 90% (Non-Condensing)
Working Temperature :		-20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H):		285mm × 237mm × 69mm (11.22″ × 9.33″ × 2.72″)

Key Features

32-bit high-speed processor
TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
Supports Wiegand interface for accessing card reader. Wiegand interface supports W26/ W34 and is seamlessly compatible with third-party card reader
Massive storage with 10, 000 cards information and 50,000 card swiping records
Supports first card function, super card and super password function, online upgrade function and online remote control of the doors
Supports various card types such as normal/ disabled/blacklist/patrol/visitor/duress/ super card, etc.
Supports tamper-proof alarm for card reader, unsecured door alarm, forced entry door alarm, alarm for door opening timeout, duress alarm, and alarm for invalid card swiping attempts alarm, case in alarm and restore, insufficient storage alarm for offline event, network break alarm
The recognition and storage of card number with maximum 20 digits
Supports online and offline operating mode;
Supports time synchronization via NTP, manual or automatic method
Watchdog for device running status detection
Data can be permanently saved when the access controller is powered off
Client supports attendance function
High/low temperature resistant design(-20°C to + 65°C)

System Parameters
Storage:	10,000 cards and 50,000 events
Processor:	32-bit
Device Interfaces
Accessible Card Reader:	4 Card Readers (Wiegand Interface) Connectable
Uplink Communication Interface:	TCP/IP Network Interface
Downlink Communication Interface:	Wiegand (W26/W34)
Output Interface:	Lock Relay × 2, Alarm Relay × 2
Input Interface:	Door Sensor×2, Exit Button×2, Case Input×2
General
Working Voltage:	DC 12V
Power Dissipation (with Load):	≤100W
Power Consumption:	≤3.5W（without load）
LED Indicator:	Power Supply Status, Communication Status, Abnormal Status
Certification:	CE, FCC
Working Humidity:	10% to 90% (Non-Condensing)
Working Temperature :	-20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H):	285mm × 237mm × 69mm (11.22″ × 9.33″ × 2.72″)
