KICKER Amplifier Car 42IQ10001 1CH Q-CLASS Mono D

G$193,990.00

IQ1000.1

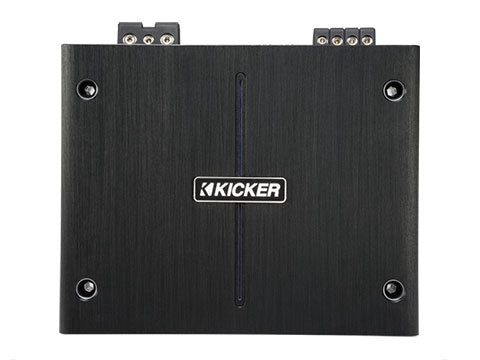

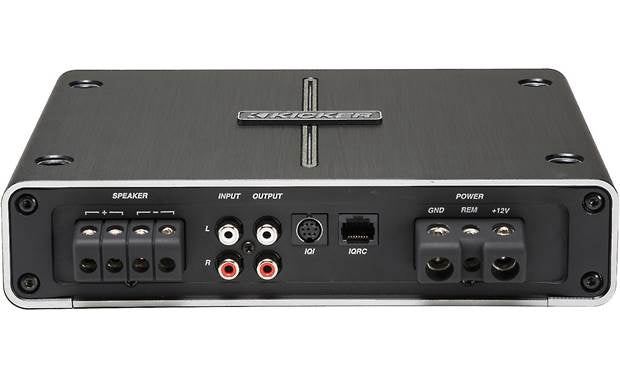

The IQ1000.1 Mono Amplifier is more than a simple Class D power plant. Built with an advanced power supply and world-class frequency control, the IQ stands out as the best way to hear every detail your music has to offer.

The sleek yet simple chassis of the IQ belies the sophistication hidden beneath. With an input range as small as 125mV all the way up to 10 volts, this amplifier easily works with nearly any radio – factory and aftermarket alike.

The IQ1000.1 delivers 500 watts at 4Ω and 1,000 watts at 2Ω. See below for more details.

Specifications

RMS Power [Watts]

@ 14.4V, 4Ω mono, ≤ 1% THD+N : 500 x 1
@ 14.4V, 2Ω mono, ≤ 1% THD+N : 1000 x 1

Length [in, cm]

9-7/16, 24

Height [in, cm]

2-1/16, 5.2

Width [in, cm]

7-9/16, 19.1

Frequency Response [Hz]

25 - 180

Signal-to-Noise Ratio [dB]

>95, A-weighted, re: rated power

Input Sensitivity

Low Level: 125mV-5V
High Level: 250mV-10V

Selectable Electronic Crossover

Variable LP 40-180Hz, 24dB/octave

KickEQ™ Bass Boost (end panel adjustable)

Variable 0–18dB @ 40Hz

"KickEQ+™ Parametric Bass Boost
(Remote Control Adjustable)"

Boost : Variable 0-18db
Adjustable Center Frequency : 24Hz-80Hz
Bandwidth : .5-10

Subsonic Filter

25Hz, 24dB/octave

Remote Bass

yes

Graphical User Interface Control (each channel)

Selectable Active Crossover

Variable High Pass 10-100Hz, Variable Low Pass : 40-200Hz
Ajustable Butterworth slope : OFF, 6, 12, 18 or 24dB/Octave
Adjustable Linkwitz-Riley slope : OFF, 6 or 12dB/Octave

KickEQ™

Graphic 31 Band, 1/3 octave, + or - 12dB

Time Delay

Adjustable Delay : 0-20ms
Adjustable increments : .02ms, .1 ms and 1.0 ms

Compressor

Adjustable Attack and Release time; Adjustable 1:1 - 10:1 ratio
Adjustable Threshold, -80 - 10dB

Input Mixer

Maps signal inputs to specified speaker outputs

CEA Specifications

CEA Power

500 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)

CEA Signal-to-Noise Ratio
