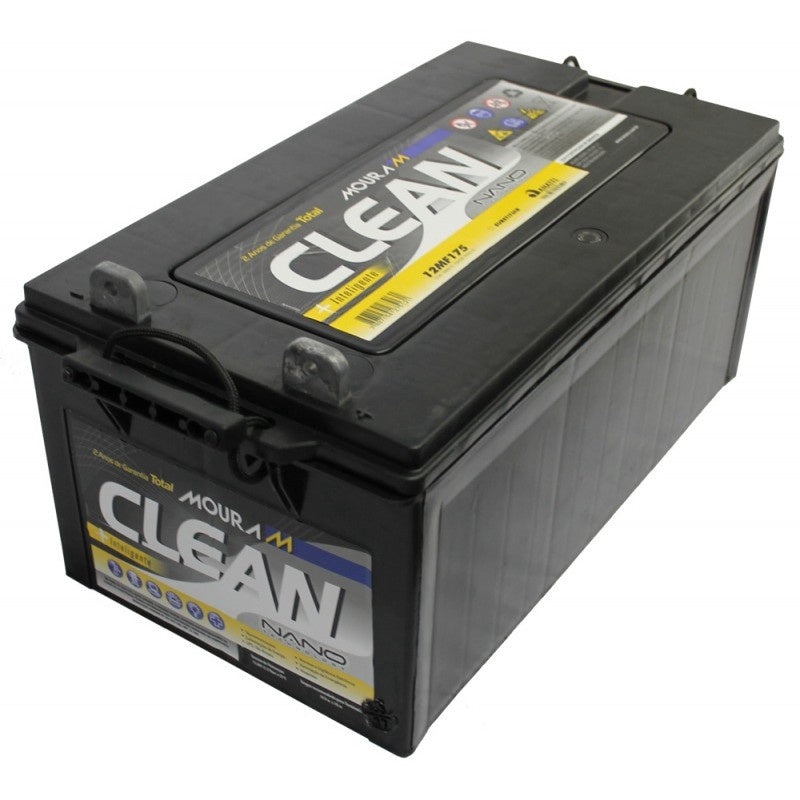

MOURA Battery Inverter 12MF150AH Deep Cycle

G$71,060.00

MOURA CLEAN NANO 150AH BATTERY - 12MF150 -

Moura Clean Nano Stationary Battery (Approved by ANATEL)

Moura UPS is the ideal battery for stationary applications. Capable of withstanding discharge peaks and with excellent load acceptance. It can be installed in series or parallel .

SERIES: The positive pole is connected to the negative pole to get more voltage and maintain amperage.

IN PARALLEL: The positive pole is connected to the positive and the negative pole to the negative to obtain more amperage and maintain the voltage.

Moura Clean Nano 150Ah Battery - 12MF150

Voltage: 12V

Capacity at 25°C (Ah)

5h 10h 20h

(1.75 Vpe) (1.75 Vpe) (1.75 Vpe)

115.3 135 150

Icc (A): 4013

Rint (m0hm): 3.1

Terminals: M8

Dimensions: Length x Width x Height

509 x 211 x 246

Main Applications:

- UPS / UPS

- Telecommunications

- Telephone Exchanges

- PABX

- Emergency lighting and signaling

- Electronic surveillance, monitoring and alarms

- Electrical substations

- Hospitals

- Hotels / Resort / Inns and others

- Solar energy / Solar photovoltaic installations

- Wind energy farms

- Buoys and maritime signaling for communications

- Electric fences

Which side of the positive pole, left or right?
The battery must be positioned from the front (the front is the side where the poles are positioned).
On each pole there will be the mark: + on one and - on the other
