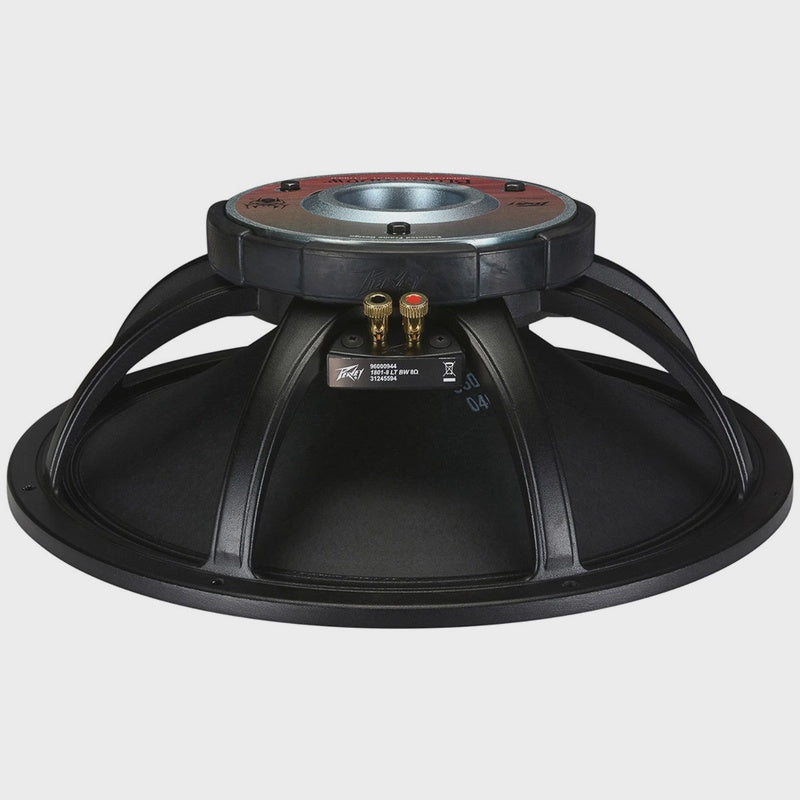

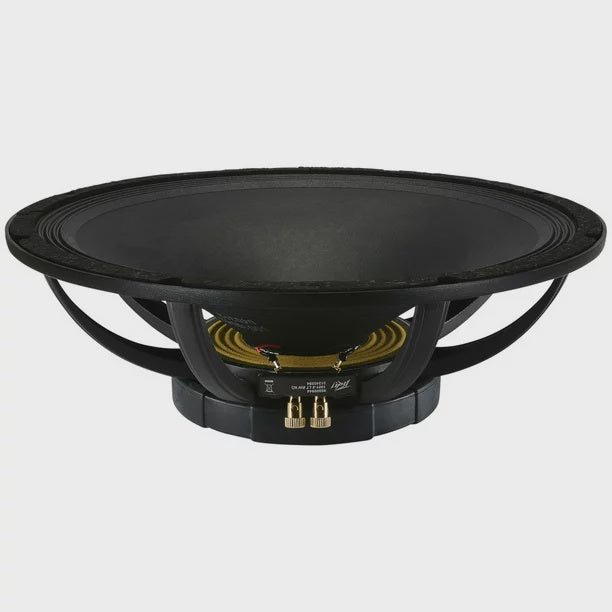

These state-of-the-art speakers’ features Kevlar® impregnated cones and a high efficiency magnet structure to provide outstanding sensitivity, reliability, and performance. The Kevlar impregnated cone is stiffer than an equivalent weight paper cone, reducing the tendency of the cone to distort the shape of the voice coil, thus avoiding rubs and scrapes. Peavey item 00560480.

• Nominal Diameter: 18"
• Power Handling (RMS): 350 Watts
• Power Handling (max): 700 Watts
• Impedance: 8 ohms
• Frequency Response: 35 to 1,000 Hz
• Sensitivity: 97 dB 1W/1m
• Voice Coil Diameter: 4"

• Resonant Frequency (Fs): 40.4 Hz
• DC Resistance (Re): 6.23 ohms
• Voice Coil Inductance (Le): 0.3 mH
• Mechanical Q (Qms): 5.59
• Electromagnetic Q (Qes): 0.58
• Total Q (Qts): 0.52
• Compliance Equivalent Volume (Vas): 10.06 ft.³
• Mechanical Compliance of Suspension (Cms): 0.13 mm/N
• BL Product (BL): 18 Tm
• Diaphragm Mass Inc. Airload (Mms): 118g
• Maximum Linear Excursion (Xmax): 5 mm
• Surface Area of Cone (Sd): 1240 cm²

• Cone Material: Paper / Kevlar
• Voice Coil Wire Material: Aluminum
• Voice Coil Former: Fiberglass
• Basket / Frame Material: Cast Aluminum
• Magnet Material: Ferrite

• # Mounting Holes: 8

• Sealed Volume: 6.75 ft.³
• Sealed F3: 63 Hz
• Vented Volume: 17.81 ft.³
• Vented F3: 31 Hz

• Brand: Peavey
• Model: 1801-8 LT BW
• Part Number: 294-3112
• UPC: 014367124347
• Product Category: Pro Woofers, Subwoofers & Midrange Speakers
• Unit of Measure: EA
• Weight: 20.75 lbs.
