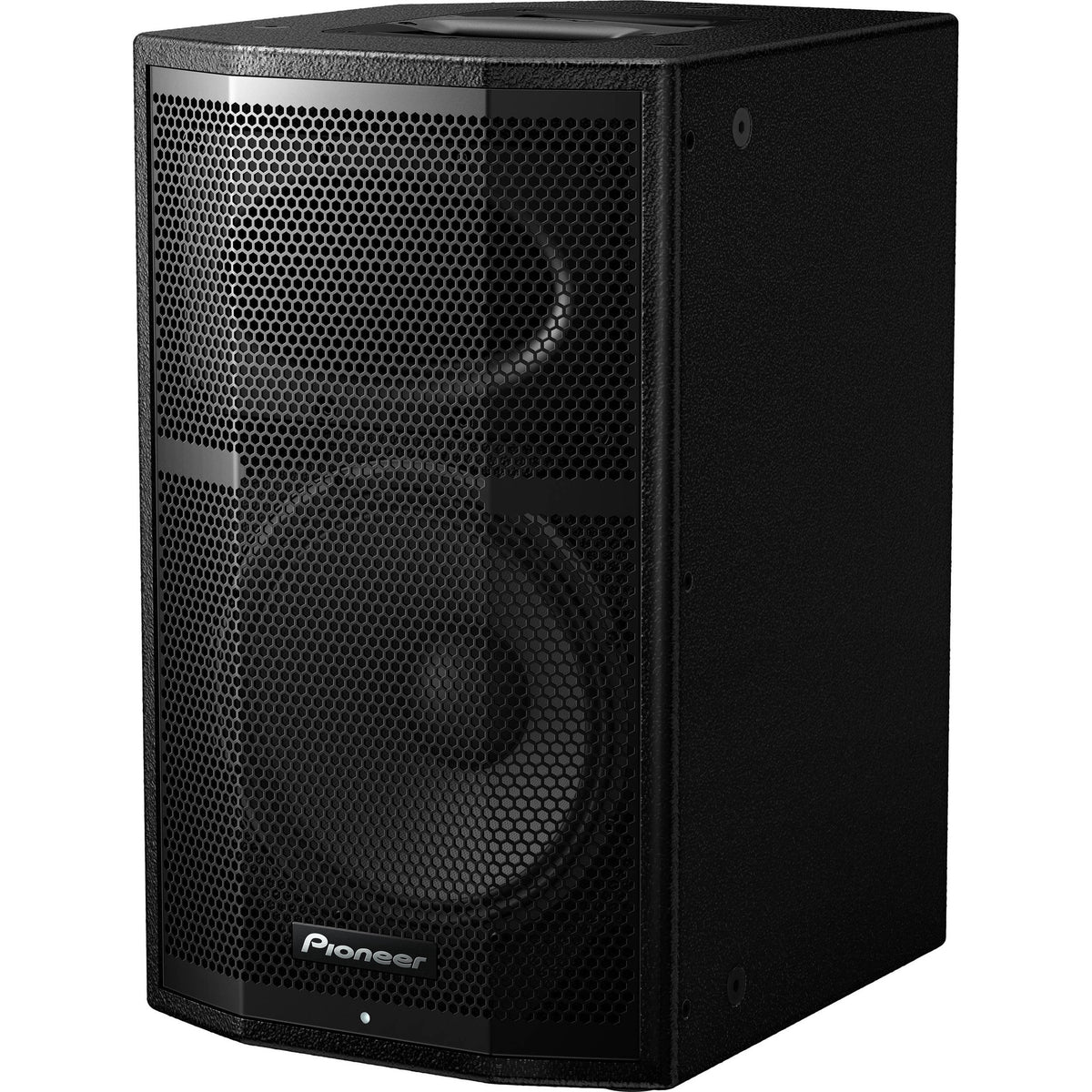

PIONEER Speaker Box 12" XPRS12 (Powered Each)

G$277,120.00

The Pioneer XPRS 12 is a 12-inch two-way full range speakers from the XPRS Series. The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer’s patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

The XPRS12 uses lightweight 12-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.

Pioneer XPRS 12 Specifications:

Speaker Type: 12" 2-way full range, bass reflex,bi-amp, active speaker
System characteristic:

Frequency Response (–10 dB): 50 Hz to 20 kHz
Dispersion (H x V): 90° x 60° (rotatable)
Maximum SPL (peak @ 1 m / 1 w): 135 dB
Crossover Frequency: 2.0 kHz

Amplifier:

Amplifier type: Class D
Power Rating: 2400 W peak / 1200 W cont. (LF800 W/HF400 W)

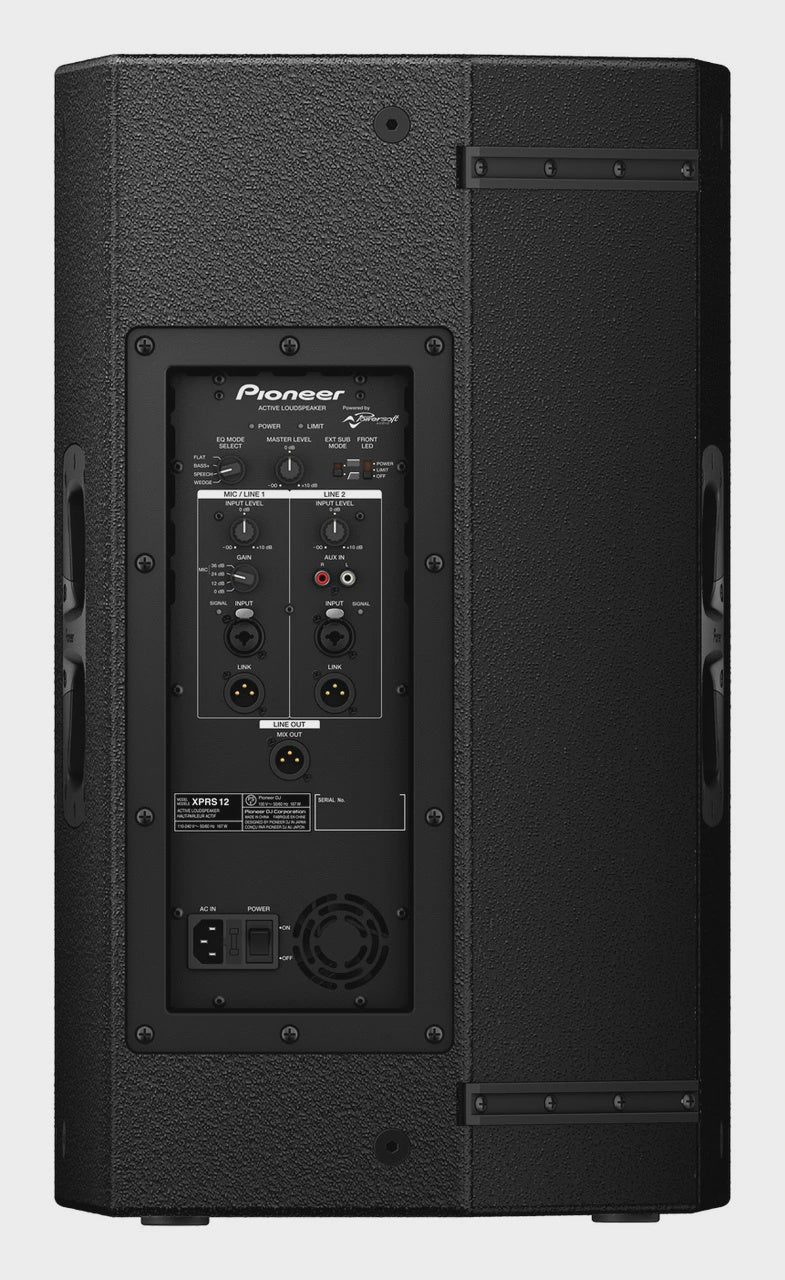

Input connectors: (2) XLR/TRS Combo (balanced), (2) RCA (unbalanced)
Impedance: 10 k Ohms

Output connectors:

(2) Through output XLR (balanced)
(1) Mixed output XLR (balanced)

Speaker:

LF driver: 12-inch ferrite LF cone driver
HF driver: 1.75-inch titanium diaphragm neodymium compression driver
Enclosure: 15 mm birch plywood, bass reflex type
Finish: Impact-resistant, black semi-matt textured
Handle: 2 (on both sides)
Pole socket: 35 mm socket (0° / 7° multi-angle)
Rigging point: (12) M10

Protection:

Amplifier Protection: Thermal limiting, over-temperature muting, output overcurrent
Driver Protection: DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
Power unit Protection: Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
