G$334,620.00

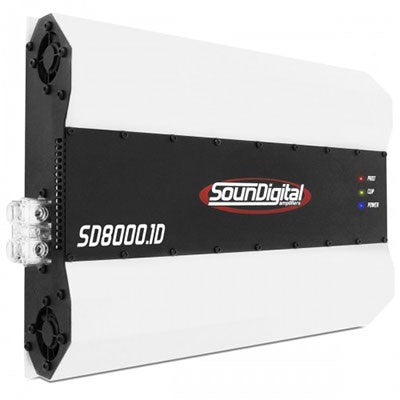

The Soundigital SD8000.1D Amplifier has 1 channel with 8000WRMS, 1 or 2 ohms* *depending on the chosen version. It has an rca cable input that connects to the output of the CD Player/MP3. This model is indicated for use in Woofers and Subwoofers in this power range. The SD8000.1D is a class D amplifier, that is, it has digital architecture. This ensures greater energy savings and less heating.
Maximum Power (*) = 8KW
Frequency Response = 5Hz to 20KHz
Input Sensitivity = 0.5V to 6V
High Pass Filter = 5Hz to 1KHz
Low Pass Filter = 50Hz to 20KHz
Supply Voltage(**) = 12.6V (10V) at 16V)
FA Dumping Factor = 100@1 Ω – 200@2 Ω
Total harmonic distortion = <1%
Standby consumption = 2.5A
Maximum consumption (resistive load) =800A
Maximum consumption (musical signal) = 640A
SMD mounting = Yes
Weight (Kg)(***) = 6Kg
Length = 354mm
Width = 270mm
Height = 73mm
Versions(****) = 1Ω and 2Ω
Power with twice the specified impedance = 6.4KW
(*) Power in Watts RMS with stable supply voltage at 12.6V.
(**) Voltage above 14.4V must be applied only for competition purposes
(***) Weight with packaging and rounding for freight calculation purposes.
(****) Check the impedance on the identification label affixed to the amplifier.
Package Contents
1 SD8000.1D Amplifier
1 User Manual
1 Soundigital Sticker
