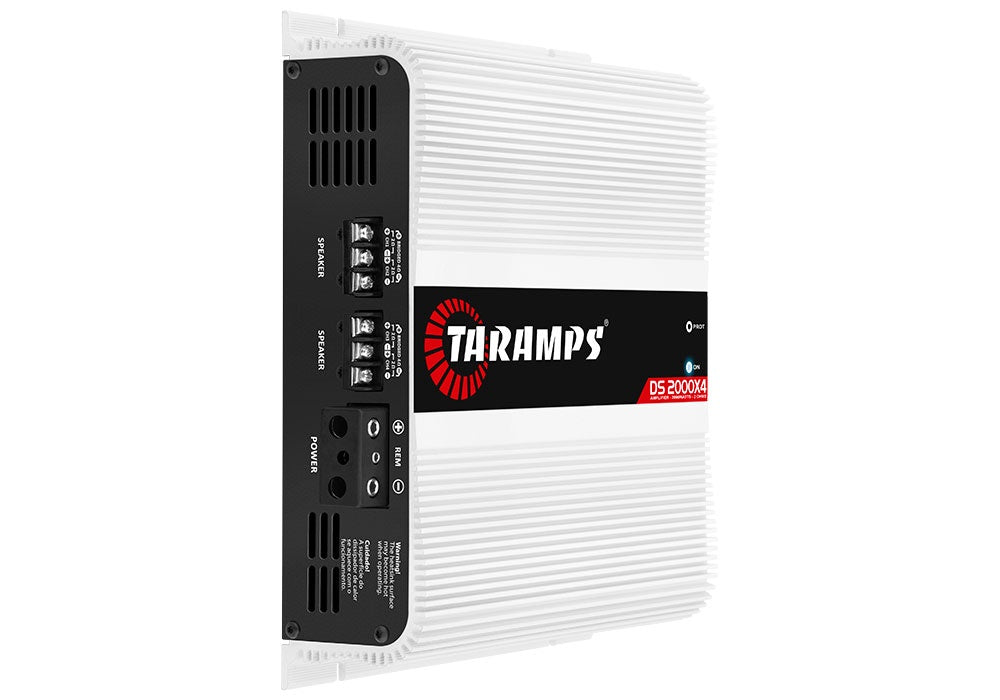

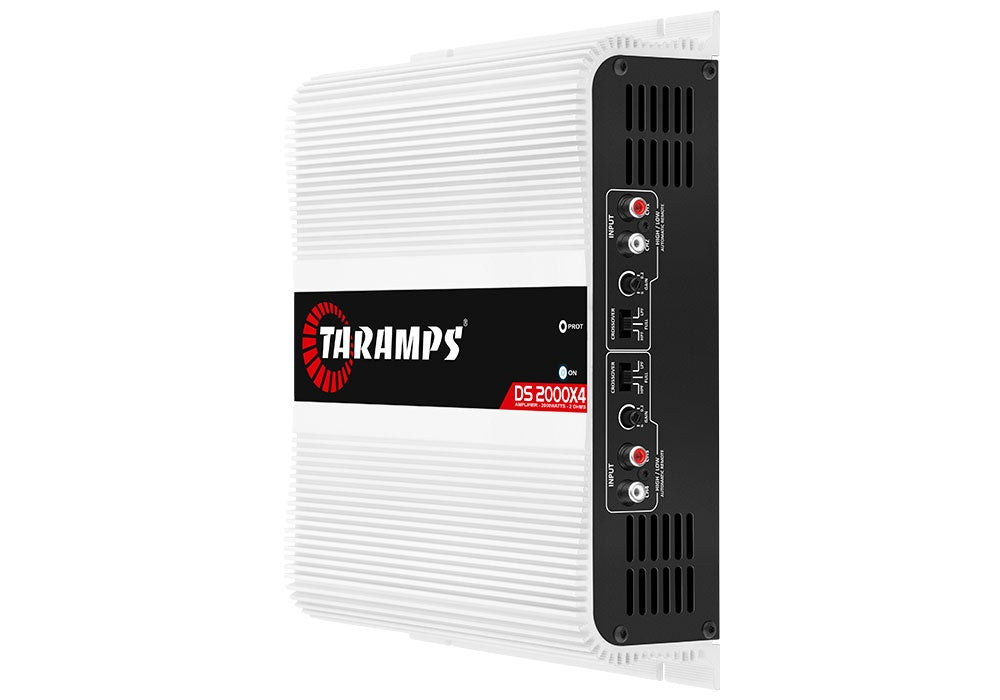

TARAMP Amplifier Car DS2000X4 2OHMS
G$70,250.00
DS 2000X4
Taramps Amplifier Module DS Class D (4 Channels 500 Watts RMS)
TECHNICAL INFORMATION
| OPERATION CLASS | D |
|---|---|
| NUMBER OF CHANNELS | 04 |
| MAXIMUM POWER | @ 14.4 VDC - 2 Ohms: 2000W RMS (4 x 500W RMS) @ 14.4 VDC - 4 Ohms: 1300W RMS (4 x 325W RMS) 2 Bridged Channels (2 x 1000WRMS) at 4 Ohms |
| INPUT SENSITIVITY | 250mV |
| SIGNAL TO NOISE RATIO | >86dB |
| FREQUENCY RESPONSE | 8Hz~20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8a) Fixed |
| CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8a) Fixed |
| INPUT IMPEDANCE | 18K Ohms |
| PROTECTION SYSTEM | Output Overload |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 2.2A |
| MAXIMUM MUSIC CONSUMPTION | 100A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 200A |
| DIMENSIONS (WXHXD) | 10,55" x 2,83" x 9,64" (268 x 72 x 245mm) |
| WEIGHT | 7,42lbs (3,37Kg) |
| EAN | 7898556847902 |
Product availability, pickup, and delivery time may vary by area.
