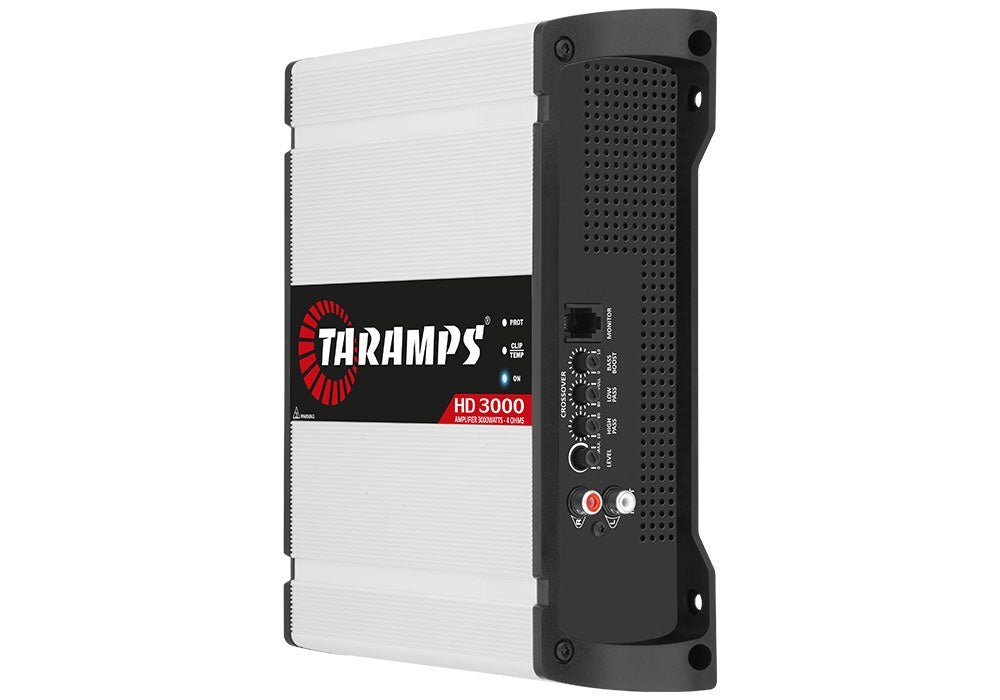

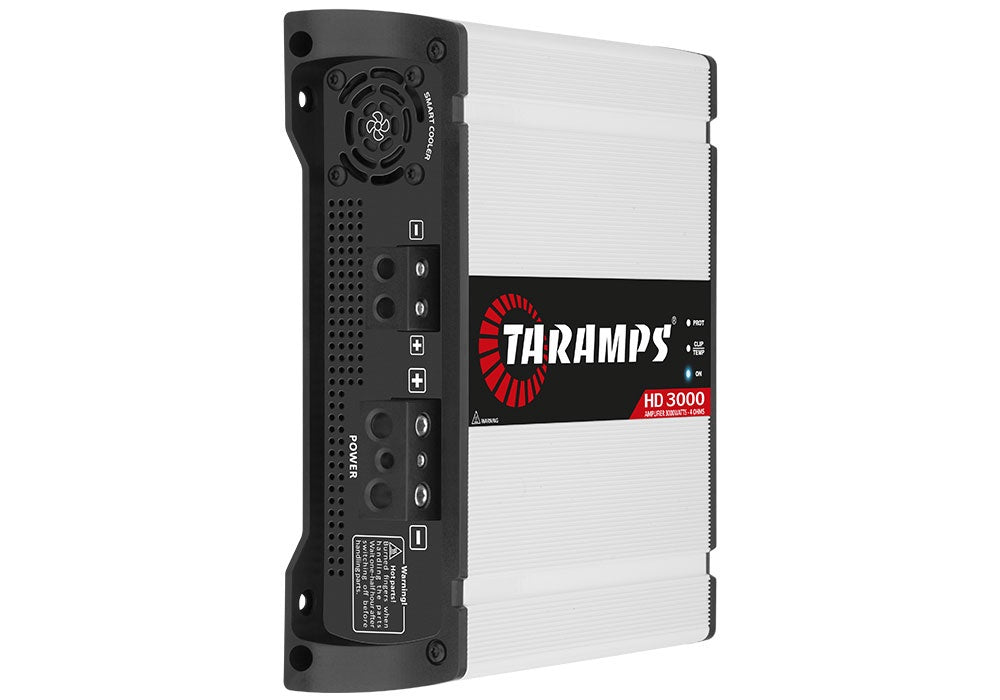

TARAMP Amplifier Car HD3000 4OHMS

G$80,080.00

HD 3000 – 4 OHMS

Taramps Amplifier Module Class D (1 Channel 3.000 Watts RMS)

Description

With a maximum power of 3000 Watts RMS, the HD3000 is mono; 4-ohms and has 1 channel. Compatible with all types of speakers, drivers and tweeters.

This product comes with an M1 LED Monitor

TECHNICAL INFORMATION

OPERATION CLASS	Class D
NUMBER OF CHANNELS	01
MAXIMUM POWER	@12.6VDC - 4 Ohms: 3000 Watts RMS @12.6VDC - 8 Ohms: 2025 Watts RMS
INPUT SENSITIVITY	230mV
SIGNAL TO NOISE RATIO	89dB
FREQUENCY RESPONSE	10Hz ~ 20kHz (-3dB)
CROSSOVER HIGH PASS (HPF)	10Hz ~ 80Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)	80Hz ~ Full (-12dB/8ª) Variable
BASS BOOST	0 ~ 10.5dB (50 Hz)
THERMAL MANAGEMENT	Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
EFFICIENCY	80%
INPUT IMPEDANCE	18K Ohms
OUTPUT IMPEDANCE	4 Ohms
PROTECTION SYSTEM	Output Short circuit / High or Low supply voltage / Thermal protection
MINIMUM SUPPLY VOLTAGE	9 VDC
MAXIMUM SUPPLY VOLTAGE	16 VDC
CONSUMPTION AT REST	1.9A
MAXIMUM MUSIC CONSUMPTION	@12.6VDC: 149A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL	@12.6VDC (1kHz): 298A
DIMENSIONS (WXHXD)	9"x 2.56" x 7.32" (229 x 65 x 186mm)
WEIGHT	4.4lbs (2kg)
EAN	7898556844925
