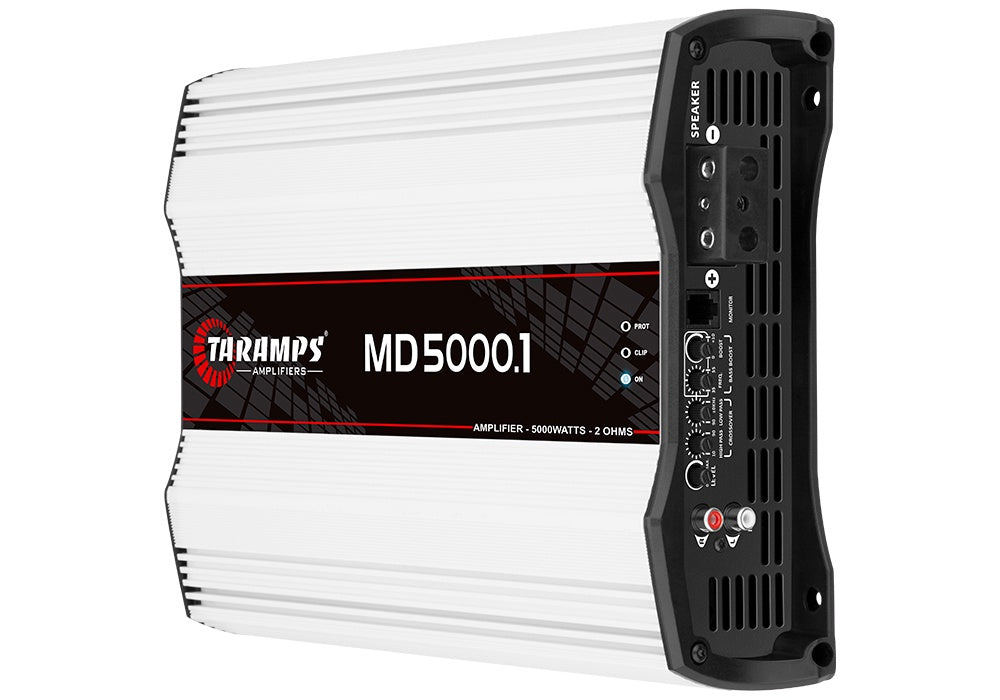

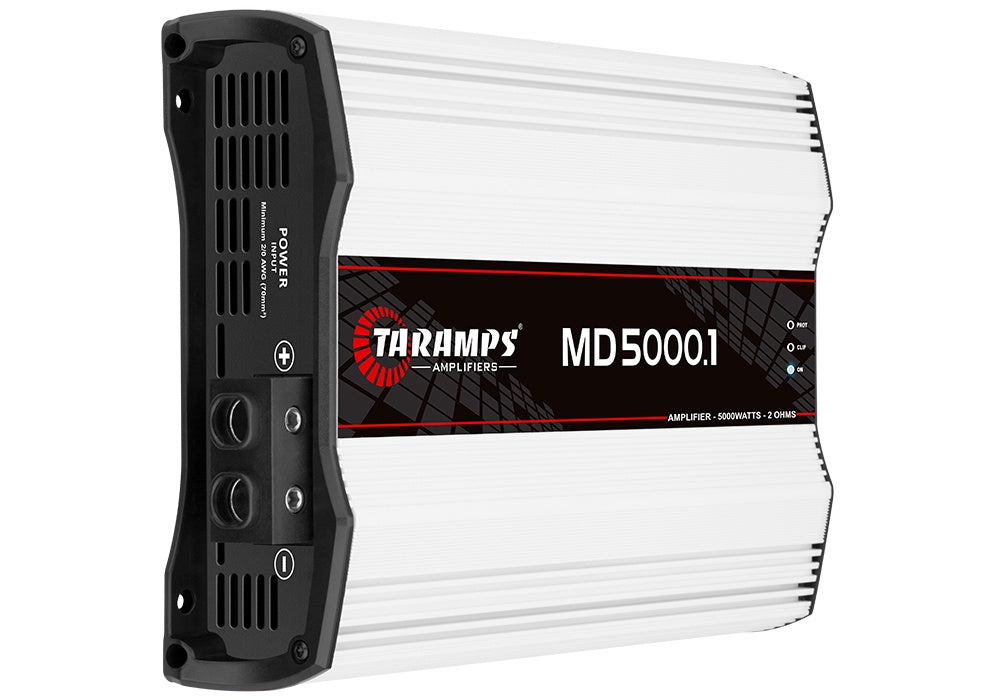

TARAMP Amplifier Car MD5000.1 2OHMS

G$99,350.00

MD 5000.1 – 2 OHMS

Taramps Amplifier Module Class D (1 Channel 5.000 Watts RMS)

Description

The MD 5000.1 was carefully designed with the latest technology, offering high performance and efficiency for various types of car audio systems. Its wide frequency response (10Hz ~10KHz(-3dB), allows it to be used with subwoofers and woofers of different models. It is an amplifier classified as mono, that is, it has a channel with a maximum power of 5000 Watts RMS. The power you’re looking for, it’s here!

TECHNICAL INFORMATION

OPERATION CLASS	D
NUMBER OF CHANNELS	01
MAXIMUM POWER	@ 12,6 VDC - 2 OHMS: 5000W RMS @ 12,6 VDC - 4 OHMS: 3200W RMS
INPUT SENSITIVITY	220mV
SIGNAL TO NOISE RATIO	>90dB
FREQUENCY RESPONSE	10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)	90Hz ~ 10KHz (-12dB/8ª) Variable
BASS BOOST	Freq.: 35Hz ~ 55Hz Boost: 0 ~10dB (50Hz)
EFFICIENCY	86%
INPUT IMPEDANCE	15K Ohms
PROTECTION SYSTEM	Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
MINIMUM SUPPLY VOLTAGE	9VDC
MAXIMUM SUPPLY VOLTAGE	16VDC
CONSUMPTION AT REST	1.40A
MAXIMUM MUSIC CONSUMPTION	230.50A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL	461A
DIMENSIONS (WXHXD)	8.98" x 2.76" x 12.87" (228 x 70 x 327mm)
WEIGHT	9.28lb (4.22Kg)
EAN	7898556844499
