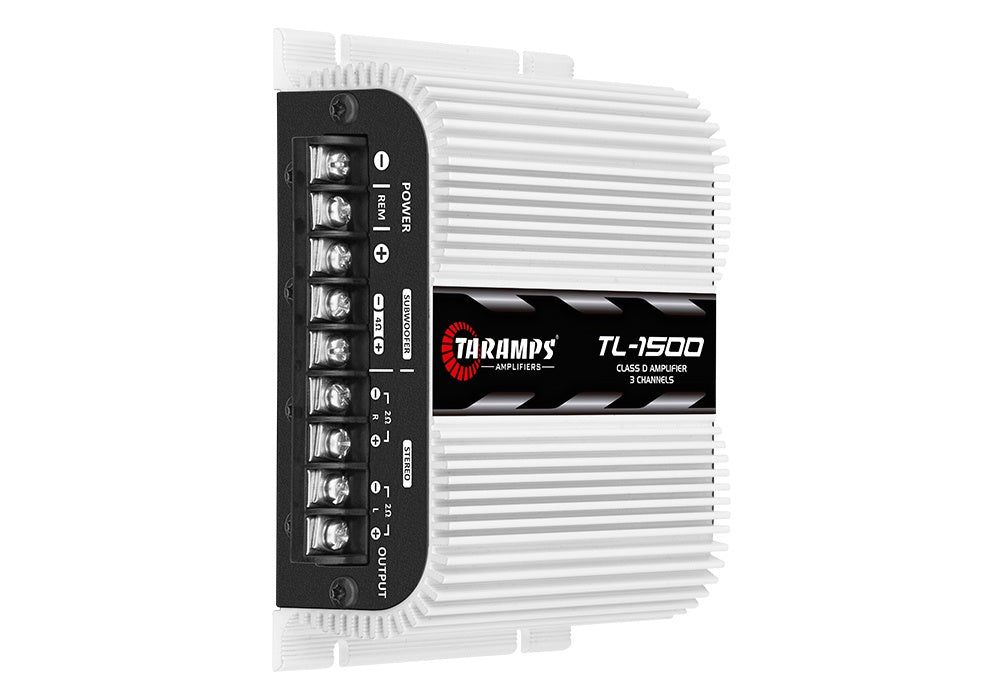

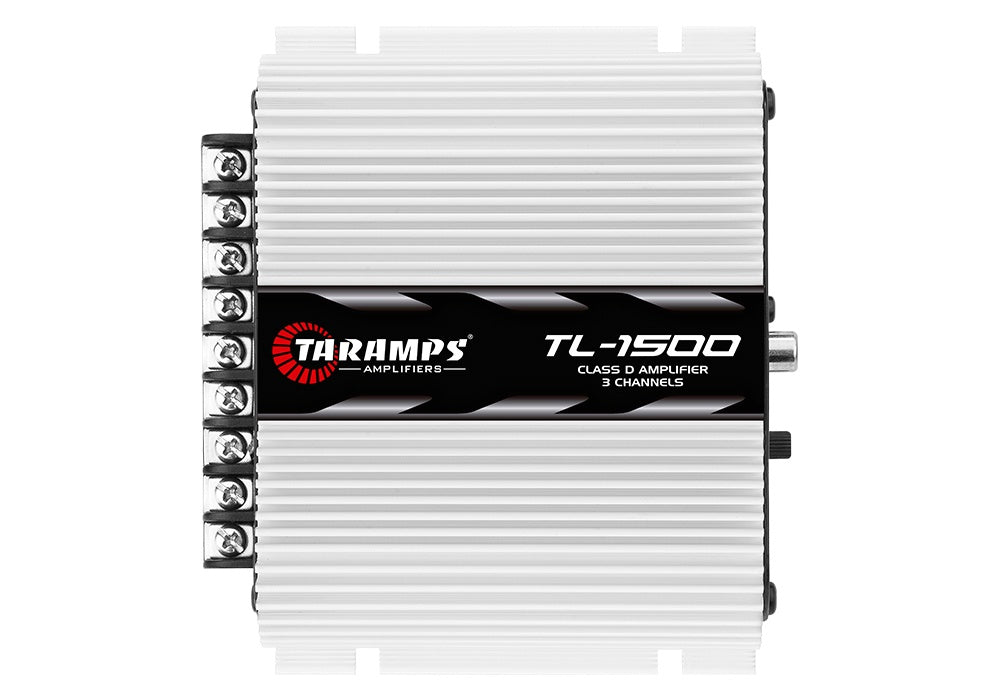

TARAMP Amplifier Car TL1500 3CH

G$38,610.00

TL 1500

Description

The TL 1500 amplifier from Taramps is intended for 3-channel car audio systems, and its features follow below:

2 stereo channels (L/R) at 95 Watts RMS, at 2 ohms each, with an active cutoff filter (HPF) at 90Hz to connect the door and trunk cover speakers.
1 SUB channel with 200 Watts RMS at 4 ohms, for subwoofer speakers. This channel is the result of the sum of the channels (L/R) with active cutoff filter (LPF) at 90Hz.

It is a stereo amplifier, with a total power of 390 Watts RMS, FULL RANGE, playing all frequencies just the way you like.

TECHNICAL INFORMATION

OPERATION CLASS	Class D
NUMBER OF CHANNELS	03
MAXIMUM POWER	@ 13.8 VDC - 2 OHMS 2 x 95W RMS (STEREO) @ 13.8 VDC - 4 OHMS 1 x 200W RMS (SUB)
INPUT SENSITIVITY	Input RCA = 320mV Wire Input = 6V
SIGNAL TO NOISE RATIO	>90dB
FREQUENCY RESPONSE	Sub Output: 15Hz to 90Hz and its active frequency cut (12dB/8ª) Stereo Output L/R: 90Hz to 30kHz and its active frequency cut (12dB/8ª)
BASS BOOST	0 to 10dB @ 50Hz - Adjustable
EFFICIENCY	90%
INPUT IMPEDANCE	10K OHMS (RCA) 1K OHMS (WIRE)
PROTECTION SYSTEM	Thermal and Output Short
MINIMUM SUPPLY VOLTAGE	9VDC
MAXIMUM SUPPLY VOLTAGE	16VDC
CONSUMPTION AT REST	0.75A
MAXIMUM MUSIC CONSUMPTION	17.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL	35A
DIMENSIONS (WXHXD)	5.43" x 1.93" x 4.76" (138 x 49 x 121mm)
WEIGHT	1.32lb (0,60kg)
EAN	7898556844772
