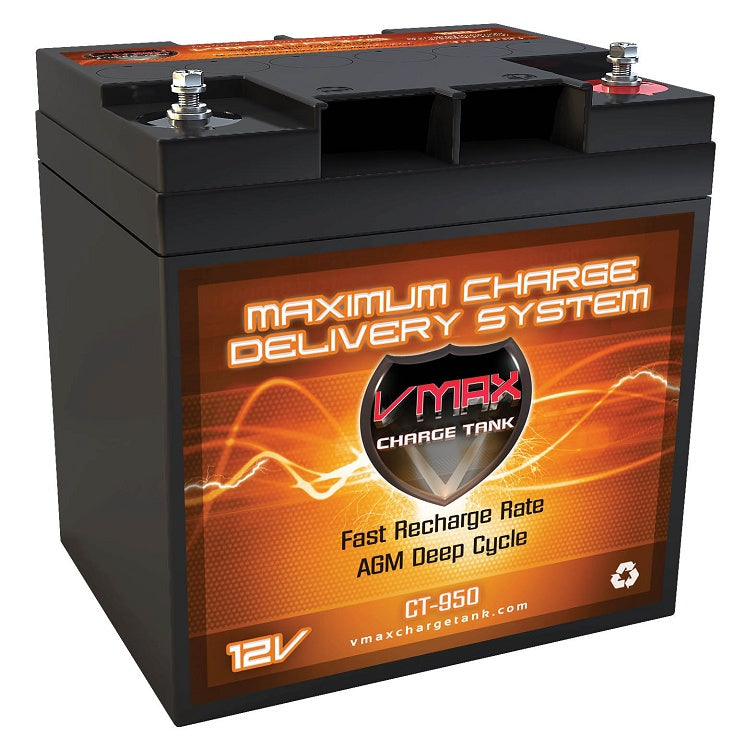

CT950 950Wrms / 1900Wmax AGM Audio System Charge Tank.

CT950

USES:
Car Audio :950W r.m.s./1900W max
Hydraulics

Recommended Charging Options:

• AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used. Battery Charger Guide.
• Vehicle Alternator: 14V-15V.
• RV Converter: 14V-15V.

• Solar Panel: 45W-125W.
• Wind Turbine: 45W-125W.

• Charge Controller: 5A-30A.


* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
                  Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.

Operating Temperature Range:

• Discharge: -4~140F
• Charge:     14~140F
• Storage:     -4~140F

Temperature Compensation:

• Cycle use:     -30mV/C

• Standby use: -20mV/C


UPC:760921777879

BCI Group Codes*:
       Matching Termination:  12N24-3, 12N24-34, BTX30L21R (- on L.H.S. & + on R.H.S)

* Matching is based on closest dimensional specifications. Differences in hold downs and termination may require some accommodations and/or the extension of one or both vehicle's battery cables.
