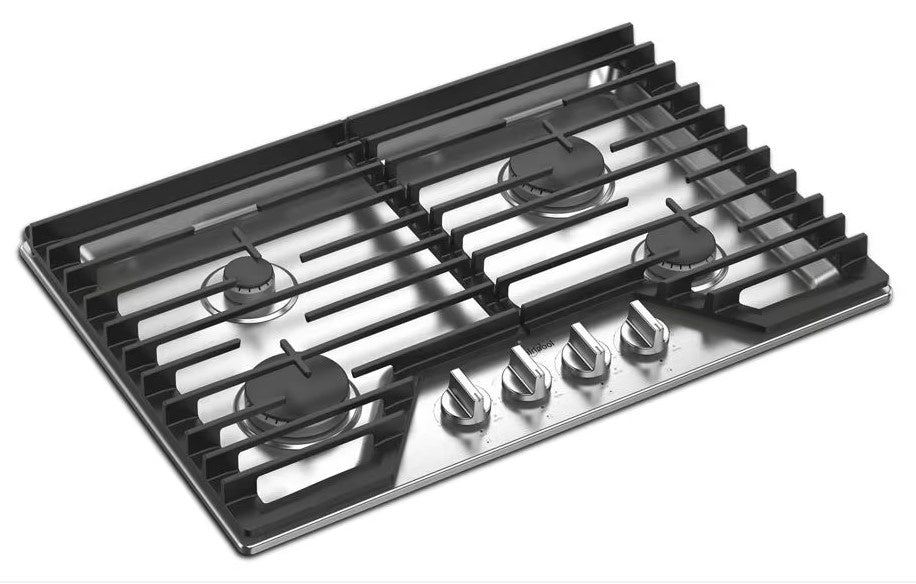

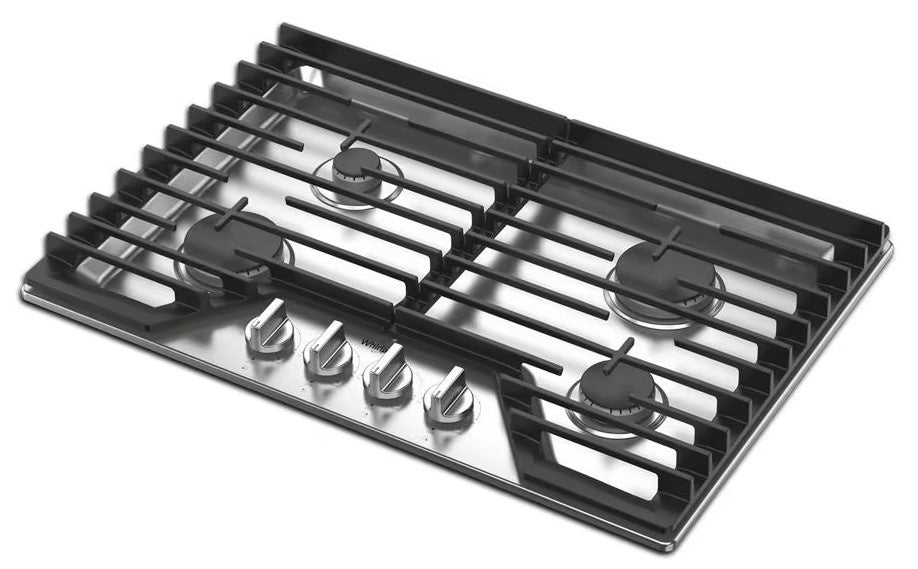

WHIRLPOOL Stove 4 Burner WCGK5030PS 30" Gas Cooktop Cast Iron

Overview

30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels, and Edge-to-Edge Cast Iron Grates. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K–12K BTU Multi-Purpose Burners are perfect for daily cooking. Clean up easily with EZ-2-Lift™ Hinged Cast-Iron Grates, and a smooth, porcelain-enameled surface that makes it simple to wipe up cooktop spills.

Specifications

Height:
5.5625 inches
Width:
30 inches
Depth:
21 inches
Download Dimension Guide
Certifications
ADA Compliant

ADA Height and Side Reach Compliant

UL

Yes

Cooktop Details
Combination Match with Oven

WOES3027L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC0A, WOS51EC7, WOS52EM4, WOS52ES4M, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7

Cooktop Surface Color

Stainless

Digital Display

No

Griddle Included

N/A

Heating Element On Indicator Light

No

Hot Surface Indicator Light

No

Ignition Type

Direct Spark Ignition

Installs Over Built-In Oven

Yes

Exterior Details
Knob Color

Stainless Steel

Knob Type

Plastic

Dimensions
Cutout Depth

20 in

Cutout Depth Max

20 in

Cutout Depth Min

19 in

Cutout Width

29.563 in

Cutout Width Max

29.563 in

Depth

21 in

Gross Weight

60.54 lbs

Height

5.5625 in

Net Weight

56.14 lbs

Width

30 in

Element/Burner Details
Automatic Pan Detection

No

Automatic Pan Size Adjustment

No

Cooktop Element Style

Sealed Burner

Left Front Element-Burner Power

12000 BTU

Left Front Element-Burner Type

Standard

Left Rear Element-Burner Power

5000 BTU

Left Rear Element-Burner Type

Simmer

Number of Cooking Element-Burners

4

Number of Grates

2

Power Boost

No

Right Front Element-Burner Power

9100 BTU

Right Front Element-Burner Type

Standard

Right Rear Element-Burner Power

18,000 BTU

Right Rear Element-Burner Type

Power

Ventilation Details
Downdraft Vent

No

Ventilation Type

N/A

Venting

N/A

Details
Cooktop Configuration

All Burners

Digital Display

No

Installs Over Built-In Oven

Yes

LP Convertible

Yes - Kit Included

Power Outage Compatible

Yes

Controls
Control Location

Front

Control Type

Knobs

Grate Details
Grate Details

Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish

Number of Grates

2

Smart Compatibility
Works With

No

Electrical
Power Cord Included
